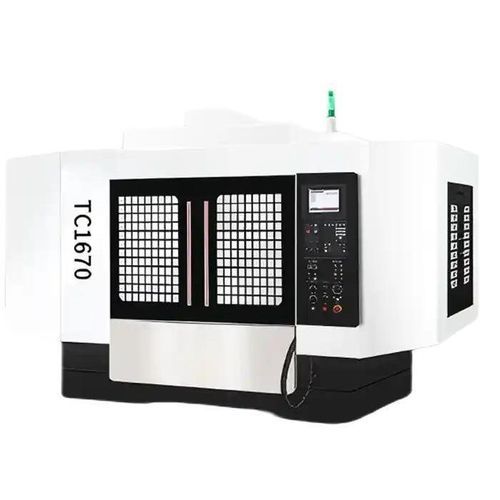

CNC drilling and tapping machine TC-1675

bench3-axisfor plates

Product Overview
The TC-1675 is a high-speed, large-format CNC drilling and tapping centre intended for precise machining of large plates, panels and multi-hole components. Optimised for mass tapping, multi-face drilling and micro-drilling of aluminium and non-ferrous alloys, it delivers high productivity with burr-free holes and high-speed tapping.

Main facts

• Table size (bench): 1700×650 mm
• Triaxial stroke (X / Y / Z): 1800 / 750 / 400 mm (note: the specifications table on the page lists 1600/750/400 mm in one row)
• Maximum carrying capacity: 500 kg
• Spindle speed: 20,000 rpm

Key Features

• Extra-large working area: 1700×650 mm bench accommodates long panels, plates and mould bases without repositioning.
• Extended X travel (1800 mm option): supports full-length part processing in one pass to reduce fixture cost and machining time.
• High-speed spindle (20,000 rpm): ensures clean tapping and burr-free micro-drilling in aluminium and magnesium alloys.
• Fast tool change and precision positioning: improves cycle time for multi-hole drilling and thread-cutting operations.
• Heavy load handling (500 kg): suitable for thick plates and large mould fixtures.

Recommended Configurations

• High-speed servo ATC (automatic tool changer) — reduces cycle time for multi-tool operations.
• Mist collection system — improves operator environment and chip evacuation.
• Through-spindle coolant — essential for deep-hole tapping and long-drill applications.
• Auto pallet changer (APC) — increases productivity for batch production.
• CCD positioning system — for fixture verification and part orientation auto-correction.

Application Case

• Client: 5G aluminium enclosure supplier (China).
• Workpiece: thin-wall aluminium housings with approximately 70 threaded holes.
• Setup: TC-1675 with 20-tool servo ATC and through-spindle coolant.
• Results: thread pitch deviation < ±0.01 mm; cycle time < 80 s per housing; hole roundness deviation < 5 μm; reported zero thread defects under high-speed tapping cycles.

Product Specifications (extracted from page table)

• Triaxial stroke (X/Y/Z): 1600/750/400 mm (see note above regarding 1800/750/400)
• Distance from main nose to working top: 150–550 mm
• Bench size (L×W): 1700×650 mm
• Maximum carrying capacity: 500 kg
• T-type groove (number × width × spacing): 5×14×130
• Spindle bore / taper: φ100 mm / BT30
• Main shaft speed: 20,000 rpm
• Spindle motor power: 3.7 / 5.5 kW
• Rapid traverse (X/Y/Z): 30 / 36 / 48 m/min
• Cutting/feed speed: 10 / 10 / 10 m/min
• Tool magazine: 21 pockets; tool max φ60 mm / 200 mm length / 3 kg weight
• Tool exchange time: 1.3 s (knife-knife)
• Positioning accuracy: 0.012 mm; repeatability: 0.008 mm
• Linear guides (X/Y/Z): 35 / 35 / 45 mm
• Ball screws (X/Y/Z): 40 / 32 / 36 mm
• Servo motor torque (X/Y/Z): 13.7 / 13.7 / 22.5 N·m
• Air supply: 280 L/min, 6–8 bar
• Total electrical capacity: 15 KVA
• Overall dimensions (X×Y×Z): 4000 × 3400 × 3100 mm
• Machine weight (approx.): 6200 kg

Technical specifications

• Model: TC-1675
• Brand: MINNUO
• Bench size: 1700×650 mm
• Travel (X/Y/Z): 1800 / 750 / 400 mm (page model details) — table row shows 1600/750/400 mm
• Max load: 500 kg
• Spindle speed: 20,000 rpm
• Spindle taper: BT30; spindle bore: φ100 mm
• Spindle motor power: 3.7 kW or 5.5 kW
• Tool magazine: 21 pockets; tool max φ60 mm / 200 mm length / 3 kg weight
• Rapid traverse (X/Y/Z): 30 / 36 / 48 m/min
• Positioning accuracy: 0.012 mm; repeatability: 0.008 mm
• Ball screws: 40 / 32 / 36 mm (X/Y/Z)
• Guideways: 35 / 35 / 45 mm (X/Y/Z)
• Total electrical requirement: 15 KVA
• Approx. machine weight: 6200 kg
