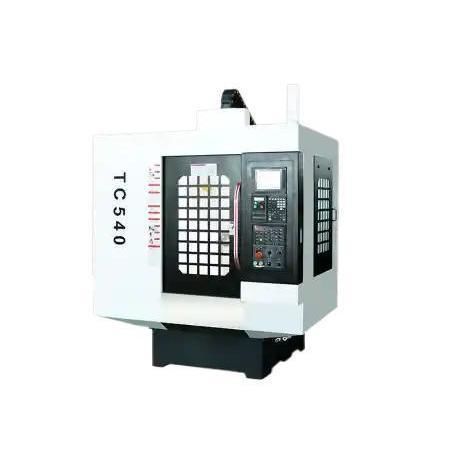

CNC drilling and tapping machine TC-540

3-axisfor metal plateshigh-speed

Overview
The TC-540 is a compact CNC drilling and tapping centre designed for high-speed, small-format part production. Equipped with a 20,000 RPM BT30 spindle, compact X/Y/Z strokes (500/400/300 mm) and a 300 kg load table, the machine balances high-speed rotation and precise axis control for dense hole patterns and fine-feature components.

Key Features

• 20,000 RPM BT30 spindle: high-speed hole making and consistent tapping quality for aluminum and plastics.
• Compact axis strokes (X/Y/Z = 500 / 400 / 300 mm): optimized for small components with dense hole arrays.
• 300 kg load table: supports multi-part fixtures and repeat batch loading.
• Lightweight cast base with fast acceleration: reduces non-cutting time and improves cycle efficiency.
• Flexible CNC controller options: compatible with FANUC, Mitsubishi, Siemens or local control systems.

Recommended Configurations

• Automatic Tool Changer (ATC) for multi-tool sequences.
• Oil mist cooling to extend tool life and improve tapping finish.
• Workpiece probe for faster setup and improved alignment accuracy.
• Anti-vibration foundation pads to enhance stability in production environments.
• Multi-station fixtures enabling batch processing of 8–12 parts per cycle.

Application Case

• Client: Mobile accessory manufacturer (Vietnam).
• Use: Drilling and tapping aluminum SIM trays and frames.
• Configuration: TC-540 with ATC and dual-clamp fixture.
• Results: Average cycle time 22 s per tray; hole accuracy ±0.008 mm; tapping yield 100%.

Product Specifications (table)

• Triaxial stroke (X/Y/Z): 500 / 400 / 300 mm
• Spindle centre to column guide rail surface: 466 mm
• Distance from spindle nose to worktop: 150 ~ 450 mm
• Bench size (L × W): 650 × 400 mm
• Maximum carrying capacity: 300 kg
• T-slots (number × width × spacing): 3 × 14 × 121 mm
• Main spindle speed: 20,000 RPM
• Spindle taper: BT30
• Spindle motor power: 3.7 kW (standard) / 5.5 kW (option)
• Rapid traverse (X/Y/Z): 48 / 48 / 48 m/min
• Cutting feed (X/Y/Z): 10 / 10 / 10 m/min
• Tool magazine capacity: 21 tools
• Tool max diameter/length/weight: φ60 mm / 200 mm / 3 kg
• Maximum diameter (full / adjacent): 60 / 80 mm
• Positioning accuracy (X/Y/Z): 0.008 mm
• Repeatability (X/Y/Z): 0.005 mm
• Air supply: 280 L/min at 6–8 bar
• Total electrical capacity: 15 KVA
• Coolant tank volume: 160 L
• Machine dimensions (L × W × H): 1880 × 2600 × 2700 mm
• Machine weight (approx.): 3200 kg

Technical specifications / Caractéristiques

• Model / Series: TC-540
• Bench size: 650 × 400 mm
• X / Y / Z travel: 500 / 400 / 300 mm
• Max load capacity: 300 kg
• Main spindle speed: 20,000 RPM
• Spindle taper: BT30
• Spindle motor power: 3.7 kW (std) / 5.5 kW (opt)
• Rapid traverse: 48 m/min (X/Y/Z)
• Cutting feed: 10 m/min (X/Y/Z)
• Tool magazine: 21 positions
• Max tool size: φ60 mm / 200 mm / 3 kg
• Positioning accuracy: 0.008 mm; Repeatability: 0.005 mm
• T-slots: 3 × 14 × 121 mm
• Air: 280 L/min @ 6–8 bar
• Total power: 15 KVA
• Coolant capacity: 160 L
• Machine size: 1880 × 2600 × 2700 mm
• Machine weight: approx. 3200 kg
