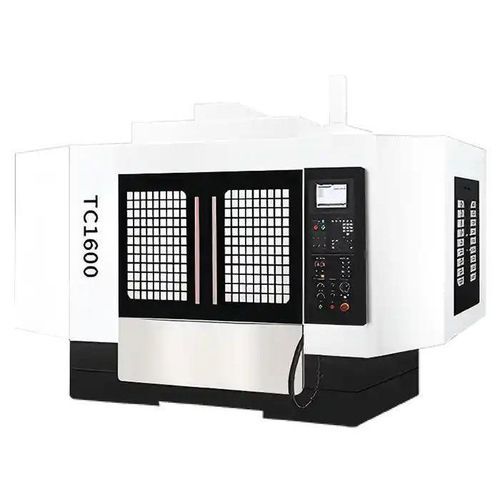

CNC drilling and tapping machine TC-1600

vertical3-axisfor printed circuit boards

Product overview
The TC-1600 Series is a high-speed vertical CNC drilling and tapping center designed for fast-cycle machining of small to mid-size workpieces. With a 20,000 rpm spindle, 1600 mm X-axis travel and a 450 kg load capacity, this machine is intended for efficient multi-hole drilling, blind-hole tapping and pocket contouring in aluminum, copper and engineering plastics.

Main product details

• Bench size (length × width): 1700×400 mm
• Triaxial stroke (X / Y / Z): 1600 / 500 / 300 mm
• Maximum carrying capacity (table): 450 kg
• Main spindle speed: 20,000 rpm
• Spindle taper: BT30 / BT40
• Spindle motor power: 5.5 / 7.5 kW
• Tool magazine: 21 pockets (tool max diameter φ60 mm / length 200 mm / weight 3 kg)
• Fast move speed (X/Y/Z): 30 / 48 / 48 m/min
• Cutting feed speed (X/Y/Z): 10 / 10 / 10 m/min
• Machine overall dimensions (XYZ): 3850 × 2620 × 2370 mm
• Machine weight (approx.): 4100 kg
• Water tank volume: 160 L
• Total electrical capacity: 15 KVA

Key features

• 20,000 RPM high-speed spindle: Enables ultra-fast drilling and threading with reduced cycle times and burr-free edges.
• Extended X-axis travel: 1600 mm for long parts or multi-station fixtures.
• Compact Y/Z stroke: 500 / 300 mm suitable for flat or low-profile components with complex hole patterns.
• 450 kg load table: Stable support for multiple parts or heavy aluminum profiles.
• Servo-controlled axis motion: Accurate feed control for fine tool engagement and positioning.

Recommended configurations

• Automatic Tool Changer (ATC) to reduce non-cutting time and improve multitool productivity.
• Dual-pallet system for continuous production (part loading while machining).
• Oil-mist or water-coolant system to extend tool life and ensure thermal stability during high-speed tapping.
• Renishaw tool presetter / probe for automated tool length and part alignment.
• Anti-vibration mounts to improve accuracy and machine longevity during continuous high-speed operation.

Application case

• Client: Precision electronics manufacturer (South Korea).
• Use case: High-speed drilling and tapping of 3C product aluminum frames.
• Setup example: TC-1600 with ATC, dual-pallet and coolant mist system.
• Reported results: Average part cycle time reduction ~35%, hole roundness within ±0.01 mm, fully formed tapping threads, stable high-speed performance without overheating or chatter.

Product specification table (selected parameters)
Range of work — Triaxial stroke (X/Y/Z) — Unit: mm — 1600/500/300
The distance from the spindle center line to the column guide rail surface — Unit: mm — 516
The distance from the main nose to the working top — Unit: mm — 150~450
Workingbench — Bench size (length and width) — Unit: mm — 1700×400
Maximum carrying capacity — Unit: kg — 450
T-type groove (slot number, slot width spacing) — — 3×14×121
Principal axis — Main shaft speed — Unit: rpm — 20000
Taper hole of spindle — — BT30/BT40
Power of spindle motor — Unit: kW — 5.5/7.5
Speed — Fast moving speed (X/Y/Z axis) — Unit: m/min — 30/48/48
Speed — Cut feed speed — Unit: m/min — 10/10/10
Tool magazine — Number of knives — — 21
Tool maximum diameter/length/weight — — φ60mm/200mm/3kg
Maximum diameter (full/adjacent) — Unit: mm — 60/80
Machine tool accuracy — Positioning accuracy (X/Y/Z) — Unit: mm — 0.008
Machine tool accuracy — Repeat positioning accuracy (X/Y/Z) — Unit: mm — 0.005
Gas source/air pressure — — 280L/min 6~8bar
Total electrical capacity of the machine tool — Unit: KVA — 15
Water tank volume — Unit: L — 160
Machine Exsize (XYZ) — Unit: mm — 3850×2620×2370
Machine tool weight (approx.) — Unit: kg — 4100

Technical specifications

• Model / Series: TC-1600 Series
• Spindle speed: 20,000 rpm
• Spindle taper: BT30 / BT40
• Spindle motor power options: 5.5 kW or 7.5 kW
• X/Y/Z travel: 1600 / 500 / 300 mm
• Bench size: 1700 × 400 mm
• Max table load: 450 kg
• Tool magazine: 21 pockets (max tool φ60 mm, length 200 mm, weight 3 kg)
• Fast traverse: X/Y/Z = 30 / 48 / 48 m/min
• Cutting feed: X/Y/Z = 10 / 10 / 10 m/min
• Positioning accuracy: 0.008 mm; repeatability: 0.005 mm
• Machine dimensions (L×W×H): 3850 × 2620 × 2370 mm
• Approx. machine weight: 4100 kg
• Water tank: 160 L; Electrical capacity: 15 KVA; Air: 280 L/min at 6–8 bar
