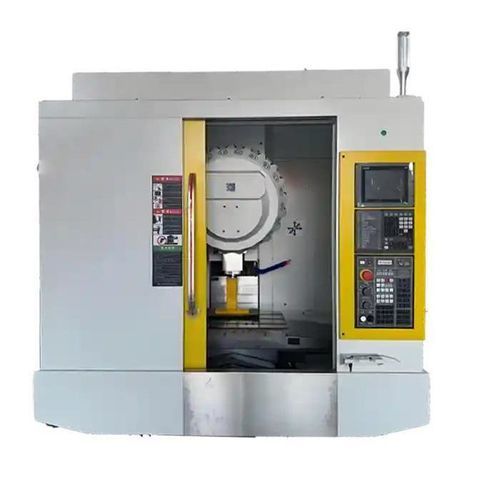

CNC drilling and tapping machine TC-1065

table type3-axisfor plates

Overview
The TC-1065 is a large-table, high-speed CNC drilling and tapping center engineered to process oversized or multi-part setups efficiently. Featuring a 20,000 rpm high-speed spindle, a 1000 mm X-axis stroke and 650 mm Y-axis travel, and a wide table for heavy assemblies, this machine is optimized for high-throughput precision holemaking and thread processing across broad surfaces.

Main product details

• Bench size (length × width): 1100 × 650 mm
• X / Y / Z travel (triaxial stroke): 1000 / 650 / 300 mm
• Maximum carrying capacity (table): 450 kg
• Spindle speed / Main shaft speed: 20,000 rpm

Key Features

• 20,000 RPM Spindle (BT30 / Optional BT40): Ultra-fast hole drilling, fine-pitch thread tapping and clean edge finishing on aluminum and light alloys.
• 1000 mm X-Axis + 650 mm Y-Axis travel: Handles large single components or multi-fixture setups.
• 450 kg load capacity on wide table: Maintains rigidity and stability for extended part support without deformation.
• Z-Axis travel 300 mm: Suitable for parts with low to medium thickness or shallow cavity drilling.
• Wide control compatibility: Available with FANUC, Siemens, Mitsubishi or GSK controls for global usability.

Recommended configurations

• 20-position disc-type ATC for rapid tool changes and multi-feature drilling cycles.
• Oil mist or MQL cooling system to protect tool edges during aluminum and copper tapping.
• Part probing and alignment kit to automate datum setup and improve large-part repeatability.
• Pneumatic clamping fixtures for quick-lock batch work in mass production.
• Chip conveyor system to handle debris from multiple deep-hole operations.

Application case (example)

• Client: Industrial control cabinet manufacturer (Germany).
• Use case: Drilling and tapping of electrical enclosure base panels and top covers.
• Setup: TC-1065 equipped with a 20-tool ATC, mist cooling and custom vacuum fixture.
• Reported results: 60 holes/thread cycles in <45 seconds; hole position tolerance ≤ ±0.01 mm; cycle time reduced by ~32% versus previous gantry drill setup.

Additional performance & accuracy information

• Positioning accuracy: typical ±0.005 mm; repeatability ±0.003 mm.
• Rapid traverse capability referenced up to ~48–60 m/min (depending on configuration).
• Recommended for light metal components (aluminum brackets, 3C parts, heat sinks, phone casings) and precision automotive parts requiring high-speed drilling and tapping.

Technical specifications

• Model: TC-1065 Series
• Bench size: 1100 × 650 mm
• X / Y / Z travel: 1000 / 650 / 300 mm
• Maximum table load: 450 kg
• Spindle speed: up to 20,000 rpm (BT30 standard; BT40 optional)
• Spindle options: high-speed precision spindle; coolant-through-spindle (CTS) optional
• Control compatibility: FANUC / Siemens / Mitsubishi / GSK (optional)
• Tool magazine: recommended 20-position disc-type ATC (optional)
• Cooling: oil mist or MQL recommended for non-ferrous tapping
• Probing & alignment: part probing kit available (optional)
• Clamping: pneumatic clamping fixtures supported (optional)
• Chip handling: chip conveyor system available (optional)
• Typical positioning accuracy: ±0.005 mm; repeatability ±0.003 mm
• Typical rapid traverse: up to 48–60 m/min (model/configuration dependent)
