Guide roller
stainless steeleccentric

guide roller
guide roller
guide roller
guide roller
guide roller
Add to favorites
Compare this product


Characteristics

Type
guide
Material
stainless steel
Other characteristics
eccentric

Description

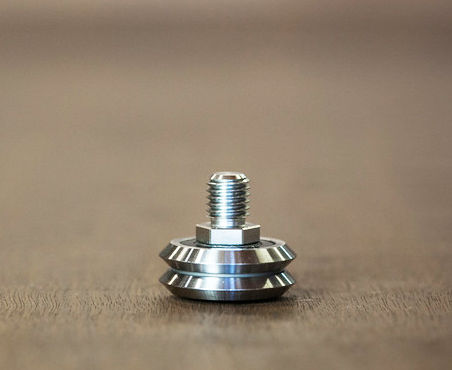

Studded Guide Rollers Modern Linear Studded Guide Rollers eliminate the need for separate installation hardware. One studded roller replaces three components. There is no need to incorporate a separate bolt or bushing into a carriage assembly. Mounting is facilitated with a female hex opposite of the threaded stud, making installation and future replacement easy. The studded roller is designed with a lower profile than our individual guide rollers and bushings, creating a more compact unit. Studded rollers offer a versatile, high performance and economical solution to a wide variety of linear motion applications. There is no loss of load capacity or longevity with Modern Linear’s studded guide rollers. The studded rollers incorporate the same, super-finished raceways of our guide rollers to offer superior speed and performance. These raceways translate to smoother and quieter operation in linear applications. The outer race incorporates a 90° v-groove as well as a 90° v-chamfer, which allows the roller to ride on a v-edge track or in a 90° v-groove. Modern Linear’s studded guide rollers are made from 304 stainless steel (SS). The stud is swaged into the bore of the guide roller. They are available in eccentric/adjustable versions as well as concentric/stationary versions
