Beacon with sounder LEDA100 ECO

steadyblinkingflash

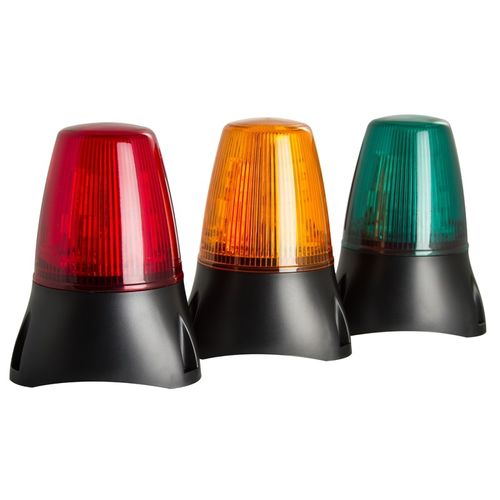

LEDA100 ECO Series – Compact Combined Audible & Visual Beacon for Local Industrial Signalling The LEDA100 ECO Series is ideal for light commercial and industrial signalling applications requiring local indication. Designed as a cost-effective solution for new machinery installations or facility upgrades, its compact design allows termination inside the enclosure via the base. This model combines visual and audible warnings, featuring 8 SMT LEDs and an integrated Piezo buzzer synchronized to the flash rate for clear alert signals. Key Features: • Available in red, amber, or green • Continuously rated • 8 SMT LEDs • Flashing or static modes • 80dB (A) @ 1m buzzer • Low current consumption • Suitable for surface, conduit box, or wall mounting • Optional wall bracket and cage guard • 3-point fixing • 360° light output around the vertical axis • Voltage options: 12vAC/DC, 24vAC/DC, 48vAC/DC, and 115/230vAC/DC • IP65 rated • 160 FPM (flashes per minute) Benefits • Dual visual and audible alert in a compact design • Suitable for new equipment or retrofit installations • Quick and flexible mounting with base-access termination • Reliable performance with minimal maintenance • Excellent visibility and clear audible output Typical Applications • Equipment status indication • Machine fault and alarm notification • Control panel alerts • Safety signalling in commercial or industrial environments • Process monitoring signals
