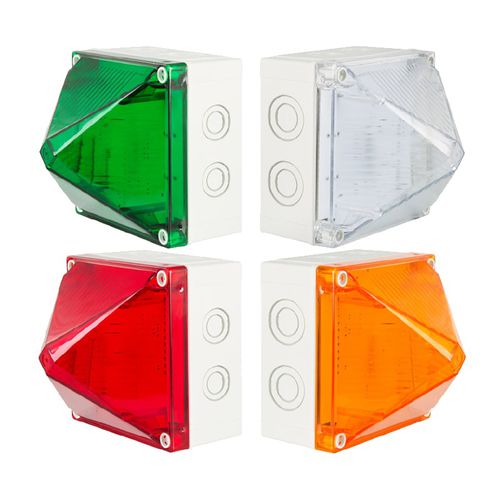

Steady beacon light LED701-700

blinkingflashLED

LED701/700 Series – High Output LED Beacon for Industrial & Marine Use The LED701/700 Series has been developed for demanding Industrial and Marine signalling applications where a powerful and reliable visual alert is essential. Each unit contains 64 ultra-bright LEDs providing intense illumination with low power consumption and long service life. This series offers the unique option of dual-colour operation, with 32 LEDs of each colour inside a single IP66/67-rated housing. The two colours can be controlled independently, allowing users to combine two alerts in one compact beacon. The LED701/700 can operate in two modes: • Static • Flashing (60 or 120 FPM), switchable during use The product is ideal for harsh environments where performance, visibility, and reliability are critical. Key Features • 64 SMT LEDs • Flashing or Static mode (60/120 FPM) • Dual-colour option (independent control) • Continuously rated • Low current draw • IP66/67 protection • Surface or wall mount • 120° light output above vertical axis • Available in Red, Amber, Green, Blue, Clear • Voltages: 20–30vAC/DC or 85–280vAC/DC Benefits • High-intensity signal for long-range visibility • Resistant to water, dust, and harsh environments • Combines two signals into one robust unit • Reduced maintenance thanks to long-life LEDs Applications • Marine vessels • Heavy industrial sites • Outdoor process signalling • Equipment and perimeter status indication
