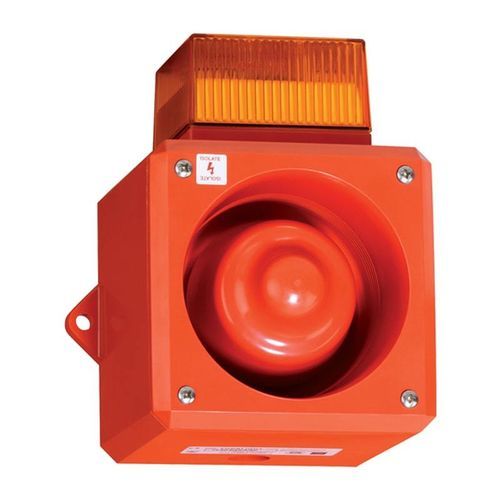

Siren with LED beacon YL5IS

ATEXIP6524VDC

Product Overview: YL5IS is part of the Yodalex range, offering a combination audible and visual signal designed for use in hazardous environments. This product series can be powered using a combined supply through a single barrier, or the sounder and beacon can be wired independently using two single barriers or one dual channel barrier. Features: - Max sound output: 105 dB (A) / 1 m - 8 LED array flashing beacon - 32 selectable tones meeting international regulations - Sound selection via DIL switch - Stainless steel fixings - Monitoring facility Material: - Flame retardant ABS enclosure Approvals & Conformities: - ATEX certified Product Codes & Variants: - YL5/ISC/T4/A/RF: LED, 12/24v DC - YL5/ISC/T4/C/RF: LED, 12/24v DC - YL5/ISC/T4/G/RF: LED, 12/24v DC - YL5/ISC/T4/O/RF: LED, 12/24v DC - YL5/ISC/T4/R/RF: LED, 12/24v DC Technical Specifications (Summary): - Max sound output: 105 dB (A) / 1 m - 8 LED array flashing beacon - 32 selectable tones - Sound selection via DIL switch - Stainless steel fixings - Monitoring facility - Flame retardant ABS enclosure - Fire Retardent PC/ABS material - IP65 rated - Operating temperature: -25°C to +55°C - Nominal supply voltage: 12/24V DC - Lens colours: Amber, Blue, Clear, Green, Opal, Red - Zones: 0, 1, 2, 20, 21, 22 Selectable Tones: 32 selectable tones are available, meeting international regulations for fire alarms, security alarms, evacuation, and industrial signaling. (See product datasheet for full tone list and applications.) Accessories: - Solenoid Driver KCD0-SD3-Ex1.1045 - Solenoid Driver KFD0-SD2-Ex2.1045 - Zener Barrier Z728 - Zener Barrier Z928 Brand: Clifford & Snell (by Moflash Signalling Limited)
