Flash beacon YL5IS Hi Vis

LEDDC12VDC

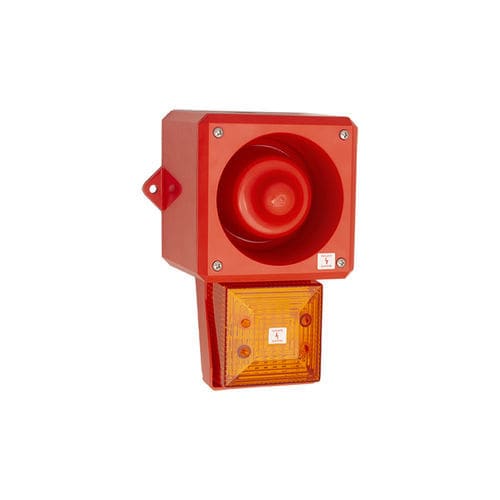

Product Overview: YL5IS Hi Vis Intrinsically Safe Combination Signal – 105 dB (A) / LED Beacon. Yodal Ex Hi-Vis range combination audible and visual signal designed for use in potentially explosive atmospheres. - Max sound output: 105 dB (A) / 1 m - IP66 Rated - LED Long Life Array - 32 selectable tones meeting international regulations - 2 stage alarm - Low current consumption - Lenses available in 8 colours - ATEX & IECEx Approved - Zones 0,1,2,20,21,22 Material: - Flame retardant ABS & Polycarbonate enclosure Approvals & Conformities: Product Variants Table: - Product Approval: YL5IS Hi-Vis Sounder/Beacon ATEX Approved - Enclosure Colour: Red Flame (RF) RAL 2002 - Safety Barrier: ISC - Temperature Class: T4 - Lens Colour: Amber, Red, Green, Opal, Blue, Clear, Yellow, Magenta - Effective Candela (cd): 2.68 to 21.12 - Order number: YL5/ISC/T4/A/HV/RF to YL5/ISC/T4/M/HV/RF - Art. No.: 245540 to 245547 - Weight (kg): 1.09 Additional Information: - Application: Ex Hazardous Area - Beacon Output: Flashing - Current Type: DC - dB: 100-110dB - Enclosure Colour: Red - FPM: FPM 60 - IP Rating: IP 66 - Lens Colour: Amber, Blue, Clear, Green, Magenta, Opal, Red, Yellow - Light Source: LED - Material: Fire Retardent PC/ABS - Maximum Temperature: +70 °C - Minimum Temperature: -25 °C - Nominal Supply Voltage: 12/24v - Number of Tones: 32 - Power Rating: Long Distance Signalling - Zones: Zone 0, Zone 1, Zone 2, Zone 20, Zone 21, Zone 22 Available Accessories: - Solenoid Driver KCD0-SD3-Ex1.1045 - Solenoid Driver KFD0-SD2-Ex2.1045 - Zener Barrier Z728 - Zener Barrier Z928 Characteristics / Technical Specifications: - Max sound output: 105 dB (A) / 1 m - IP66 Rated - LED Long Life Array - 32 selectable tones - 2 stage alarm - Low current consumption - Lenses: 8 colours - ATEX & IECEx Approved - Zones: 0,1,2,20,21,22 - Material: Flame retardant ABS & Polycarbonate - Application: Ex Hazardous Area - Beacon Output: Flashing - Current Type: DC - dB: 100-110dB - Enclosure Colour: Red - FPM: 60 - IP Rating: IP 66 - Lens Colour: Amber, Blue, Clear, Green, Magenta, Opal, Red, Yellow - Light Source: LED - Material: Fire Retardent PC/ABS - Maximum Temperature: +70 °C - Minimum Temperature: -25 °C - Nominal Supply Voltage: 12/24v - Number of Tones: 32 - Power Rating: Long Distance Signalling - Zones: Zone 0, Zone 1, Zone 2, Zone 20, Zone 21, Zone 22
