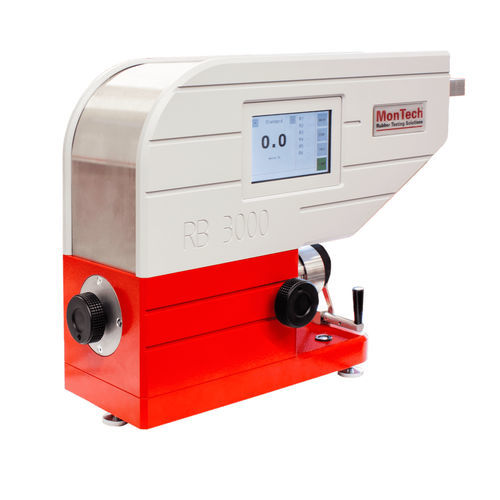

Resilience tester RB 3000

for rubberbenchtopdigital

The RB 3000 automatic Rebound Resilience tester allows the determination of the resilience properties of rubber and elastomeric materials according to DIN 53512, ISO 4662, ASTM D 1054 and ASTM D 7121. Rebound resilience is defined as the relation between the returned and the impact energy between the hammer with its fin, the specimen and the instrument. The samples used for testing are typically rubber and elastomeric materials as buttons or strips in a hardness range of 30 to 85 Shore A / IRHD N. Automatic Schob pendulum impact elasticity tester for elastomers and foams. MonTechs RB 3000 resilience tester features a rigid design with all main components integrated into the machine frame – the electronics with 5” touchscreen display, data interfaces as well as the entire mechanical system which is precisely manufactured from high strength and aluminum. The pendulum mechanism features a 15mm diameter hammer fin and is connected via the pendulum arm to a virtually frictionless air bearing system connectedt to a high resolution non-contact encoder system guaranteeing highest precision in pendulum angle measurement. A fully integrated spindle with adjustment gauge and clamping allows a quick and easy setup of the test specimen thickness so that testing can start right away. The RB 3000 is equipped with a motorized pendulum release and return allowing a fully automated test sequence without any user interference. Once the operator presses the start button on the multi-language touch-control panel, the instrument executes the selected test sequence automatically – including up to three pre-hits and three test hits.
