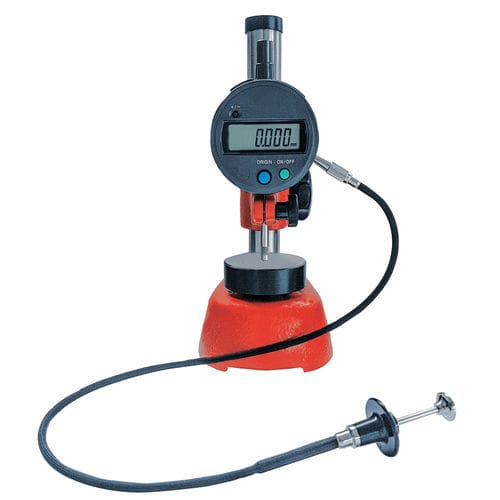

Rubber thickness gauge TGD 3000

benchtopdigital displayquality control

The TGD 3000 thickness gauge is a cost efficient and easy to use instrument for measuring the thickness of rubber of rubber-like materials. The constant force enables repeatable readings. A standard thickness gauge for rubber which can be adapted to meet most international standards. The gauge is manufactured to close tolerances and can be used as a quality control instrument. It is crucial that any thickness gauge applies a controlled pressure (kPa) to the material whose thickness is being measured. The TGD 3000 uses a deadweight system removing the uncertainty of other mechanical devices. This system ensures that the thickness is being measured under the same controlled conditions for each sample. Options Various presser foot designs and tips (4, 4.3, 6, 10, 50.5mm, …) Additional dead load weights according to various standards Manual lifting lever Interface kit and software constant force enables repeatable readings Combining the CS 3000 Compression set testing tools with the TGD 3000 thickness gauge and AO 3000 ageing oven creates a full testing set according to ISO815,DIN 53517, ASTM D 395, …
