Hydraulic simulator platform

Overview

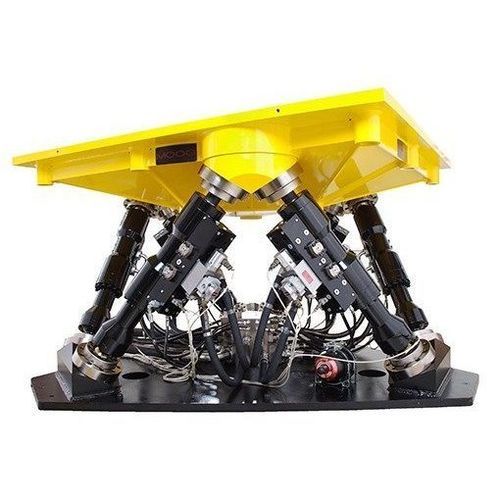

A multi-axis hydraulic simulation table (hydraulic shaker table) is a dynamic system designed to perform research and development tests. This simulation table features an extremely compact, lightweight platform and a base-clamping assembly consisting of a baseplate on which stress-resistant hydrostatic lift actuators are mounted. These actuators are connected to the platform via piston rods and spherical bearings. Integrated hardware and software control both positions and acceleration profiles.

Advantages

• Enables new test scenarios
• Faster test execution
• Controlled test costs
• Minimized laboratory footprint
• Optimized test quality and throughput

Applications

• Noise, vibration and harshness (NVH) testing
• Durability and fatigue testing of components and subsystems
• Dynamic functional testing
• Ride quality evaluation of seating systems, cockpit modules and complete vehicles
• Testing of vehicle components and accessories

Resources

• Overview - Hydraulic Simulation Table (PDF)
• Brochure - Moog Test Controller (PDF)

Technical characteristics / specifications

• Type: Multi-axis hydraulic shaker table (simulation table)
• Platform: extremely compact and lightweight
• Base-clamping assembly: baseplate with stress-resistant hydrostatic lift actuators
• Mechanical connection: piston rods and spherical bearings between actuators and platform
• Control: integrated hardware and software for position and acceleration control
• Purpose: R&D tests, NVH testing, durability testing, dynamic functional testing, ride quality assessments
