Hydraulic simulator platform

multi-axis

Overview

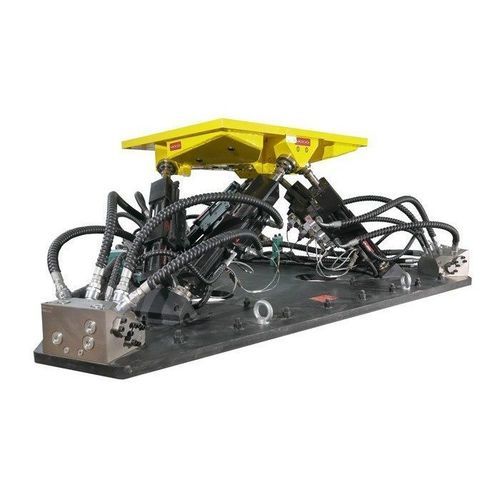

The Moog Light Payload hydraulic simulation table is designed for testing lightweight components and assemblies. The system supports payloads up to 300 kg and operates up to 60 Hz, providing a compact solution for dynamic tests requiring acceleration, force and displacement inputs. The platform offers 6 degrees of freedom for multi-axis simulation and precise reproduction of real-world conditions.

Advantages

• Compact footprint suitable for labs and limited-space test cells
• Low-friction actuators for sustained repeatability and reliable long-term performance
• 6 degrees of freedom enabling comprehensive dynamic test profiles

Applications

• Durability testing of expansion joints and bellows
• Fatigue testing of elastomeric couplings
• Component testing of small parts and assemblies
• Fuel-tank slosh and fluid dynamics simulation

Resources
Brochure - Light Payload Hydraulic Simulation Tables (product brochure available)

Technical specifications

• Payload: up to 300 kg
• Frequency: 60 Hz
• System: dynamic, 6 degrees of freedom (6 DOF)
• Measured quantities: acceleration, force and displacement (per precise data specifications)
• Design: compact footprint
• Actuators: low friction for high repeatability and long-term performance
