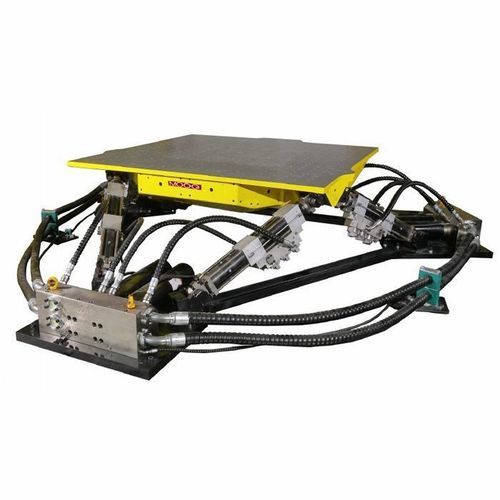

Movement simulator platform

hydraulicmulti-axis

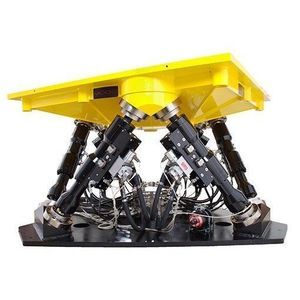

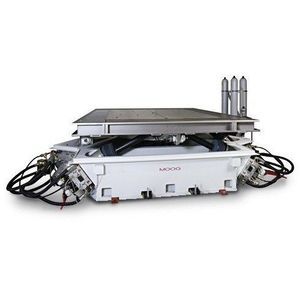

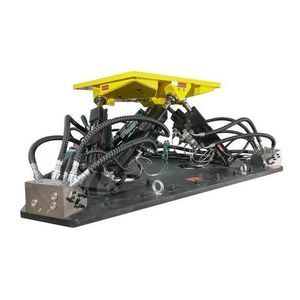

Product overview The hydraulic simulation tables (HST) from Moog are dynamic systems for research and development testing. The hexapod configuration used by Moog is an optimal design to achieve simulation and test capabilities using acceleration, force and displacement inputs and to reproduce data collected on test tracks, regardless of test type, procedure or profile.

Benefits

• High payload capacity up to 2,000 kg
• Precise test results
• 6 degrees of freedom for robust testing capabilities
• Frequency ranges up to 100 Hz

Applications

• Commercial vehicle components and subsystems
• Construction industry
• Durability testing
• Seismic applications
• Battery testing

Resources Product brochure (PDF) available.

Characteristics / technical specifications

• System type: Hydraulic simulation tables (HST) with hexapod configuration
• Purpose: Dynamic systems for research and development to reproduce test-track data using acceleration, force and displacement inputs
• Payload capacity: up to 2,000 kg
• Degrees of freedom: 6 degrees of freedom
• Frequency range: up to 100 Hz
• Results: precise test results for dynamic scenarios
