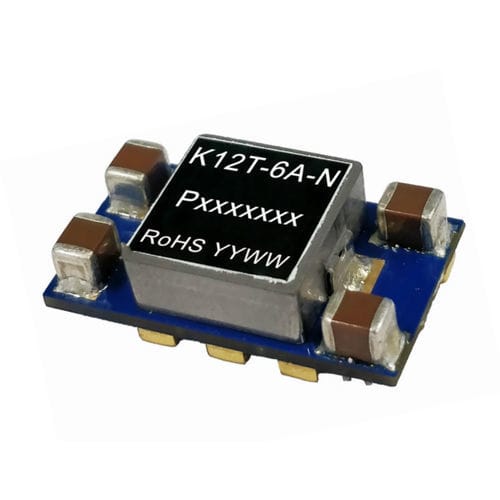

SMD DC/DC converter K12T-6A series
regulatornon-isolatedcompact

SMD DC/DC converter - K12T-6A series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - regulator / non-isolated / compact
SMD DC/DC converter - K12T-6A series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - regulator / non-isolated / compact
Add to favorites
Compare this product


Characteristics

Configuration
SMD
Electrical characteristics
regulator, non-isolated
Other characteristics
switching, compact, CE, adjustable, high-speed
Input voltage

Max.: 14 V

Min.: 8.3 V

Output voltage

Max.: 5 V

Min.: 0.75 V

Power

30 W

Description

K12T-6A series is a 6A non-isolated switching regulator. The output voltage is accurately adjustable from 0.75V to 5.0V, andtheproductisfeatured with high efficiency, fast transient response, input under-voltage, output short circuit, over-current protection. They meet CLASSBof CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely used in applications suchascommunications, computer network industry, power distributed architecture, workstations, servers, LANs/WANs and providehighcurrentwith fast transient response for high-speed chips such as FPGA, DSP, and ASIC FEATURES  High efficiency up to 94%  Operating ambient temperaturerange: -40℃to+85℃  Input under-voltage protection, output short-circuit, over-current protection High-speed transient response  Compact SMD package
