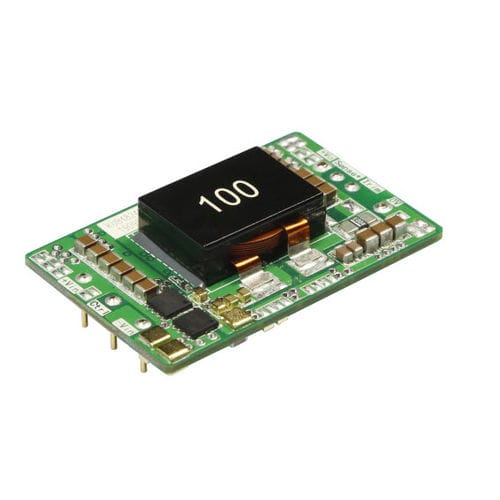

Printed circuit DC/DC converter KUB48_QB-10A series
regulatednon-isolatedwide input range

Printed circuit DC/DC converter - KUB48_QB-10A series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - regulated / non-isolated / wide input range
Printed circuit DC/DC converter - KUB48_QB-10A series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - regulated / non-isolated / wide input range
Add to favorites
Compare this product


Characteristics

Configuration
printed circuit
Electrical characteristics
regulated, non-isolated
Other characteristics
wide input range, CE, adjustable
Input voltage

Min.: 16 V

Max.: 80 V

Output voltage

12 V, 24 V

Power

120 W, 240 W

Description

KUB48_QB-10A series are non-isolated DC-DC products with 10A output current and wide input voltage. They feature efficiency upto97%,operating ambient temperature of -40℃ to +85℃, input under-voltage, output short-circuit, over-current protection. The products meet CLASS A of CISPR32/EN55032 emissions standards by adding the recommended external components and they are widely usedinapplications such as battery powered systems and robotic field. FEATURES  High efficiency up to 97%  Input under-voltage protection, output short-circuit, over-current protection  Operating ambient temperature range:-40℃to+85℃  Open frame package  1/4-Brick package industry standardpin-out  Adjustable input starting
