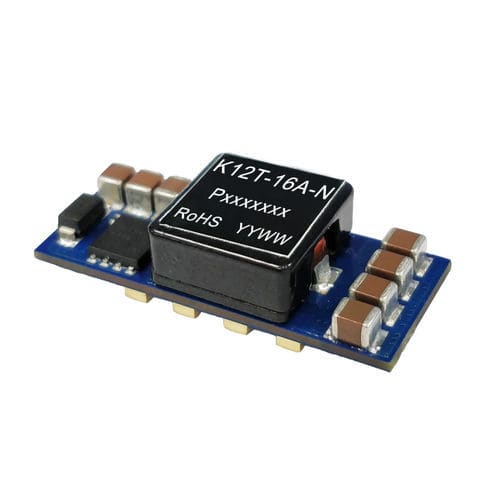

SMD DC/DC converter K12T series
powerregulatornon-isolated

SMD DC/DC converter - K12T series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - power / regulator / non-isolated
SMD DC/DC converter - K12T series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - power / regulator / non-isolated
Add to favorites
Compare this product


Characteristics

Configuration
SMD
Electrical characteristics
regulator, non-isolated, power
Applications
for telecommunications equipment, for industrial networks, server
Other characteristics
switching, compact, adjustable, EMI, high-speed
Input voltage

Max.: 14 V

Min.: 8.3 V

Output voltage

Max.: 5 V

Min.: 0.75 V

Power

50 W

Description

K12T-10A, 16A, 20A series is a 10A, 16A, 20A non-isolated switching regulator. The output voltage is accurately adjustable from0.6Vto5.0V, and the product is featured with high efficiency, fast transient response, input under-voltage, output short circuit, over-current protection. They meet CLASS B of CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely usedinapplications such as communications, computer network industry, power distributed architecture, workstations, servers, LANs/WANs andprovide high current with fast transient response for high-speed chips such as FPGA, DSP, and ASIC EATURES  High efficiency up to 96%  Operating ambient temperaturerange: -40℃to+85℃  Input under-voltage protection, output short-circuit, over-current protection

Catalogs

K12T-16A-P
K12T-16A-P
7 Pages
