Bitumen and asphalt pump AM NOYEE
diesel enginesubmersibleeccentric disc

bitumen and asphalt pump
bitumen and asphalt pump
Add to favorites
Compare this product


Characteristics

Fluid
for bitumen and asphalt
Operation
diesel engine
Priming
submersible
Technology
eccentric disc
Mobility
stationary
Domain
industrial
Applications
lubrication, unloading
Other characteristics
compact, suction
Flow

28 m³/h, 32 m³/h, 40 m³/h
(988.81067 ft³/h, 1,130.06934 ft³/h, 1,412.58667 ft³/h)

Power

5 kW, 6 kW, 7.5 kW
(6.8 hp, 8.16 hp, 10.2 hp)

Fluid temperature

Min.: -10 °C
(14 °F)

Max.: 200 °C
(392 °F)

Weight

197 kg
(434.31 lb)

Description

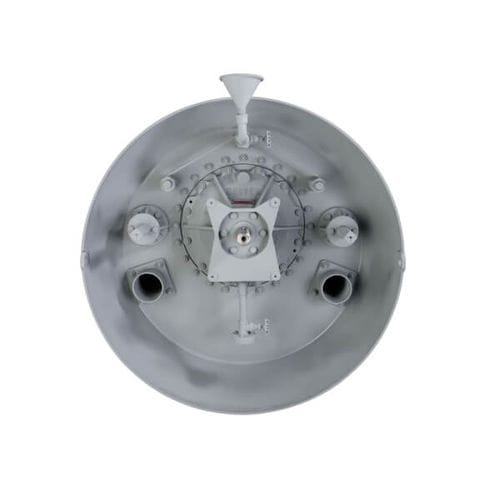

Mouvex® AM NOYEE Package Eccentric Disc Pumps are the ideal solution for unloading asphalt, asphalt emulsion, bitumen and bitumen emulsion. These pumps are compact, with all the components mounted on tank bulkhead, and feature exceptional suction capacity that enables emptying of the piping systems. They also offer constant flow rates regardless of viscosity and pressure. Performance and Specifications Performance No reheating system needed, the pump is submerged into the product Multi-purpose, attached valves enables the system to carry out all necessary operations Easy-to-operate valves, sturdy key supplied, lubrication port to prevent the servo valves from sticking Easy-to-clean system, built-in flushing system Low RPM speed No maintenance required Options Hydraulic-driven motor Diesel-driven motor Electric-driven engine
