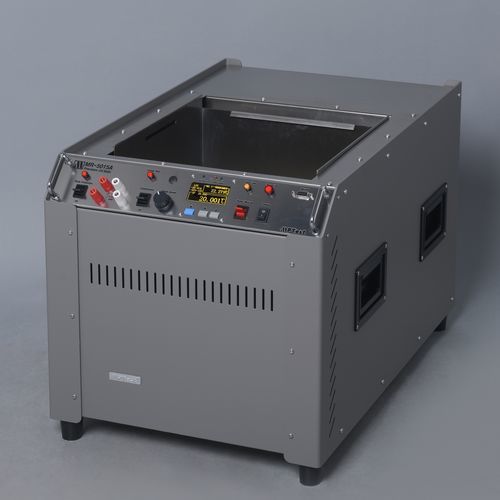

Stainless steel thermostatic bath MR-5015A

heateddigital displayconstant temperature

The MR-5015A Precision Desktop Standard Resistor Thermostatic Oil Bath is specifically designed to meet the temperature stabilization requirements for standard resistors used with temperature and electrical measurement bridges. Featuring a workspace measuring 300mm (11.8") in length, 300mm (11.8") in width, and 280mm (11") in depth, this unit offers a 30-liter capacity. With an operating temperature range from 5°C to 60°C, it is suitable for determining resistor temperature coefficients. The bath utilizes jet-stream agitation technology, which ensures exceptionally low operating noise and vibration levels while achieving a temperature stability of ±0.001°C per 10 minutes. It is equipped with an internally adjustable metal tray, allowing users to modify the height according to the dimensions of the resistors for optimal placement. - Operating Temperature: White Oil (Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F) - Working Area: Length 300mm (11.8"), Width 300mm (11.8"), Depth 280mm (11") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 30 liters (8 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.001 ℃ /10min at 20 ℃ (68°F) - Temperature Uniformity: ±0.002.5 ℃ at 20 ℃ (68°F) - Heating Time: 30 minutes from 20°C(68°F) to 30°C(86°F) - Cooling Time: 60 minutes from 30°C(86°F) to 20°C(68°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 1200W - Dimensions: 400mm (15.7") x 630mm (24.8") x 420mm (16.5") - Net Weight: Approximately 40 kg (88.2 lb)
