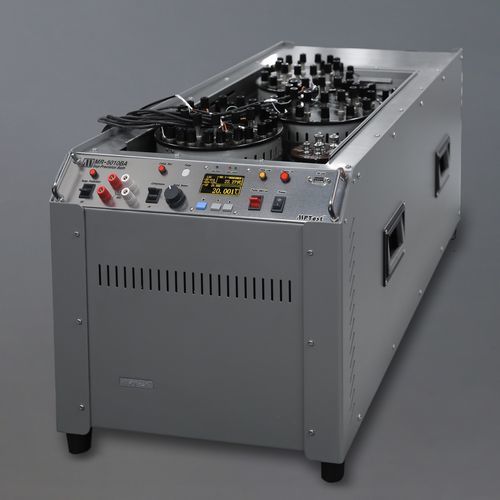

Stainless steel thermostatic bath MR-5010BA

digital displayheatedconstant temperature

The MR-5010BA is a precision, desktop, large-capacity standard resistor thermostatic oil bath, specifically designed for electrical metrology centers. Featuring a workspace measuring 550mm (21.6") in length, 300mm (11.8") in width, and 280mm (11") in depth, the unit offers a capacity of 60 liters. It utilizes jet-stream agitation temperature control technology, resulting in exceptionally low operational noise and vibration, and achieves a temperature stability of ±0.001°C per 10 minutes. The bath is equipped with an internally adjustable lifting platform, facilitating the thermostatic conditioning and long-term storage of large-volume resistors, Hamon resistors, and standard cells used in electrical metrology. - Operating Temperature: White Oil(Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F) - Working Area: Length 550mm (21.6"), Width 300mm (11.8"), Depth 280mm - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 60 liters (16 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.001 ℃ /10min at 20 ℃ (68°F) - Temperature Uniformity: ±0.002.5 ℃ at 20 ℃ (68°F) - Heating Time: 120 minutes from 20°C(68°F) to 30°C(86°F) - Cooling Time: 150 minutes from 30°C(86°F) to 20°C(68°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 1200W - Dimensions: 400mm (15.7") x 900mm (35.4") x 420mm (16.5") - Net Weight: Approximately 60 kg (132.3 lb)
