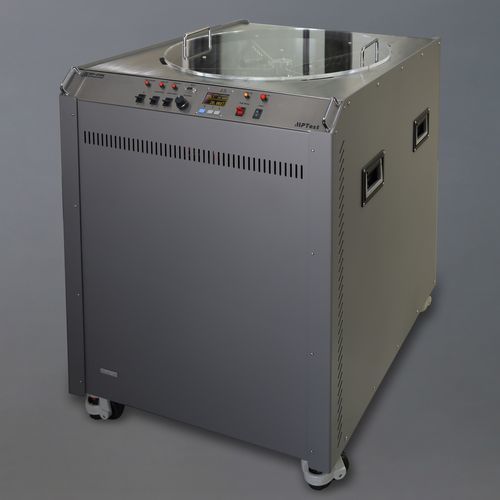

Heated thermostatic bath MR-6100L

circulationdigital displaystainless steel

The MR-6100L Precision Ultra-High Capacity Standard Resistor Thermostatic Bath is specifically designed for high-level electrical metrology centers. Featuring a workspace diameter of 670 mm and a depth of 400 mm, this unit provides a capacity of 180 liters. Utilizing jet-flow agitation temperature control technology, it operates with minimal noise and vibration while achieving temperature stability of ±0.001°C per 10 minutes. The internally designed vertically adjustable two-tier plane platform allows infrequently used standard resistors to be stored on the lower level for long-term preservation in a constant-temperature environment. - Operating Temperature: White Oil(Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F) - Workspace(Working Area): Diameter 670mm (26.3"), Depth 400mm (15.7") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 180 liters (48 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.001 ℃ /10min at 20 ℃ (68°F) - Temperature Uniformity: ±0.002 ℃ at 20 ℃ (68°F) - Heating Time: 20 minutes from 20°C(68°F) to 30°C(86°F) - Cooling Time: 30 minutes from 30°C(86°F) to 20°C(68°F) - Operating Voltage: 220V AC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 4500W - Dimensions: 800mm (31.5") x 860mm (33.9") x 900mm (35.4") - Net Weight: Approximately 120 kg (264.6 lb)
