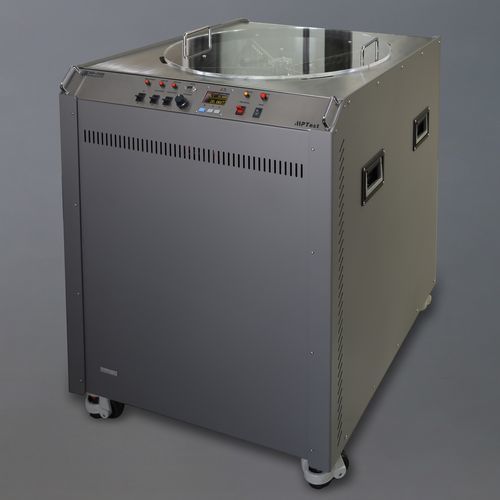

Constant temperature thermostatic bath MR-5100L

heateddigital displaystainless steel

The MR-5100L Precision High-Capacity Standard Resistor Thermostatic Bath is specifically designed for high-level electrical metrology centers. Featuring a workspace of 550mm in diameter and 380mm in depth, this unit offers a capacity of 120 liters. Utilizing jet-flow agitation temperature control technology, it operates with minimal noise and vibration while achieving a temperature stability of ±0.001°C per 10 minutes. The interior is equipped with an adjustable lifting platform, facilitating the thermostatic maintenance and long-term storage of large-sized resistors, Hamon resistors, and standard cells used in electrical metrology. - Operating Temperature: White Oil(Marcol 52): 5 ℃ to 60 ℃ (41°F to 140°F) - Workspace (Working Area): Diameter 550mm (21.6"), Depth 380mm (15") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 120 liters (31.7 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.001 ℃ /10min at 20 ℃ (68°F) - Temperature Uniformity: ±0.002 ℃ at 20 ℃ (68°F) - Heating Time: 20 minutes from 20°C(68°F) to 30°C(86°F) - Cooling Time: 30 minutes from 30°C(86°F) to 20°C(68°F) - Operating Voltage: 220V AC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 3500W - Dimensions: 680mm (26.8") x 740mm (29.1") x 900mm (35.4") - Net Weight: Approximately 100 kg (220.5 lb)
