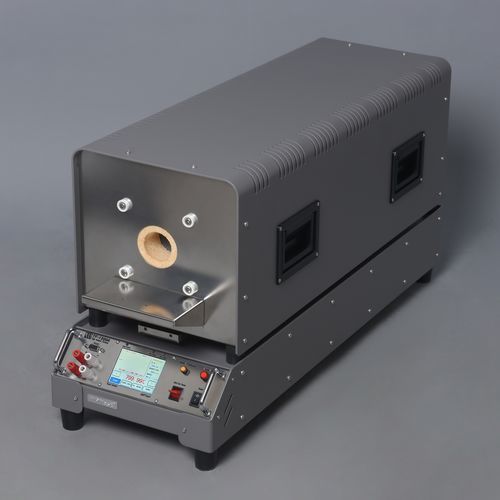

Temperature calibrator TF-1200A

for thermocouplesdry-blocklaboratory

The TF-1200A thermocouple calibration furnace is specifically designed for the verification of base metal thermocouples. It employs three-zone temperature control technology to flexibly adjust the uniformity of the axial temperature field. The system reaches a maximum operating temperature of 1200°C, with a temperature stability of ±0.2°C per minute. It features a furnace tube with a diameter of 40 mm (1.57 inches) and a length of 600 mm (23.62 inches). The system is equipped with an extendable long-arm thermocouple holder and uses an independent Type S thermocouple for precise temperature control. The touch-enabled color display supports calibration curve visualization functionality. - Operating Temperature: 300 ℃ to 1000 ℃ (572°F to 1832°F) - Working Area: Tube Furnace: 40mm(1.6") in Diameter, 600mm(23.6") in Length - Temperature Control Method: Multi-zone Temperature Control - Display Resolution: 0.01 ℃ - Temperature Stability: ±0.2 ℃ /10min at 1000 ℃ (2192°F) - Set-point accuracy: ±3 ℃ - Radial uniformity: ±0.3 ℃ (14 mm from geometry central point) - Axial uniformity: ±0.5 ℃ (±30 mm axial length from geometry central point) - Heating Time: 45 minutes from 25°C(77°F) to 1000°C(2192°F) - Cooling Time: 180 minutes from 1000°C(2192°F) to 300°C(572°F) - Operating Voltage: 220VAC±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 3200W - Dimensions: 255 mm (10") x 811mm (31.9") x 385mm (15.2") - Net Weight: Approximately 25 kg (55.1 lb)
