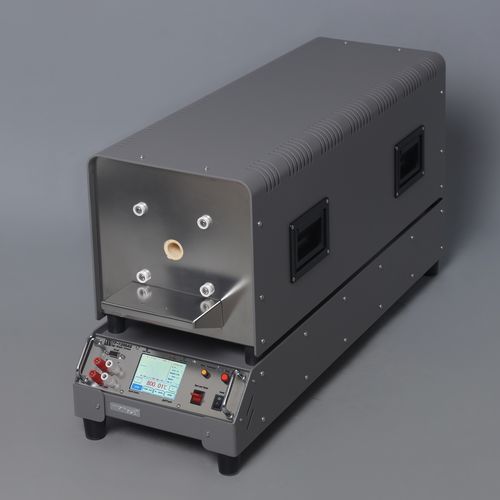

Temperature calibrator TF-1200AS

for thermocouplesprecisionlaboratory

The TF-1200AS thermocouple calibration furnace is specifically designed for the verification of precious metal thermocouples. It employs three-zone temperature control technology to flexibly adjust the uniformity of the axial temperature field. The system features a maximum operating temperature of 1200°C, temperature control stability of ±0.1°C per minute, a furnace tube diameter of 20 mm (0.79 inches), and a furnace tube length of 600 mm (23.62 inches). It is equipped with an extendable long-arm thermocouple holder and uses an independent Type S thermocouple for precise temperature control. The touch-enabled color display supports calibration curve visualization capabilities. - Operating Temperature: 300 ℃ to 1100 ℃ (572°F to 2012°F) - Working Area: Tube Furnace: 20mm(0.79") in Diameter, 600mm(23.6") in - Temperature Control Method: Multi-zone Temperature Control - Display Resolution: 0.01 ℃ - Temperature Stability: ±0.2 ℃ /10min at 1000 ℃ (1832°F) - Set-point accuracy: ±3 ℃ - Axial uniformity: ±0.3 ℃ (±20 mm axial length from geometry central point) - Heating Time: 75 minutes from 25°C(77°F) to 1000°C(2192°F) - Cooling Time: 200 minutes from1000°C(2192°F) to 300°C(572°F) - Operating Voltage: 220VAC±10%, 50Hz - Rated Power: Approximately 2000W - Dimensions: 811mm (31.9") x255mm (10") x 385mm (15.2") - Net Weight: Approximately 27 kg (59.5 lb)
