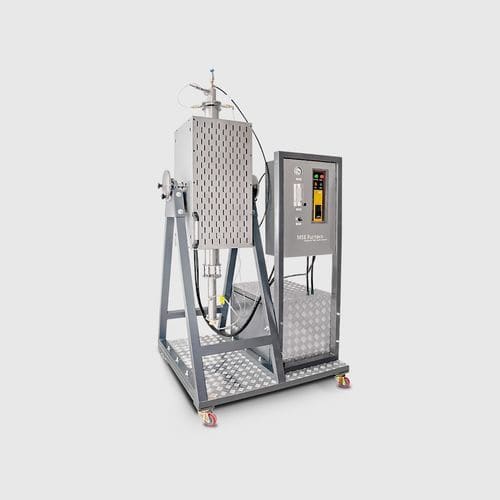

Cabinet furnace

tubularheat treatmenthardening

Metal heat treatment furnace can use both horizontally and vertically. It is designed to perform heat treatment (hardening, tempering, etc.) of various solid metal samples on a laboratory scale. If the furnace used vertical, the solid sample is placed in the middle part of the furnace by means of a wire. After the heating, the solid sample which dropped as automatically down into the liquid placed under the furnace can be cooled suddenly. The required protective gas and vacuum atmosphere can be created inside of mullite, quartz, alumina tubes that are chosen according to usage temperatures. The process can be also continued without sample dropping at the desired conditions in the metal heat treatment furnace. STANDARD FEATURES Programmable step controller via digital display Observation of set and real temperature Delayed start and program save feature Temperature control via PID and ±1°C temperature display sensitivity System protection for over temperature. Audio visual warning alarm Temperature measurement via thermocouples Error display in case a breakdown Percentage of electrical energy consumption Able to resume the program after the power failure Heating on both side High-quality insulated heat zone Low energy consumption Stainless steel gas inlet and outlet flanges** Manual gas flowmeter Vertical or horizontal operating Suitable tube to usage temperature Automatic sample dropping system Low external surface temperature (Ambient Temp. +40°C) thanks to double-layers steel construction Epoxy painted galvanized-steel exterior
