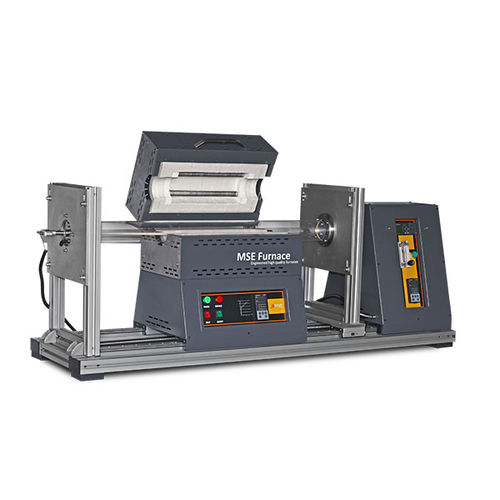

MSE rapid heat treatment furnace is suitable for faster heat-up and cool-down of samples. The pre-heated rapid heat treatment furnace proceeds on the fixed tube and performs heat treatment at the desired ramp. So, the tube is stable during all process and furnace moves back and next. Since the sample is in a quartz tube, heat treatment can be performed under the enquired atmosphere conditions.
All operations are done automatically by setting on a screen. Graphene, carbon nanotube placement, rapid pyrolysis, rapid heat treatment, thermal shock processes can be done at rapid heat treatment furnace.
STANDARD FEATURES
PLC and touch screen
Observation of set and real temperature
±1°C temperature display sensitivity
System protection for over temperature. audio visual warning alarm
Temperature measurement via thermocouples
Error display in case a breakdown
Heating on both side
High-quality insulated heat zone
Low energy consumption
Heat shields
Stainless steel gas inlet and outlet flanges
Manual flowmeter
Proper tube for usage temperature
Low external surface temperature (Ambient Temp. +40°C)
thanks to double-layers steel construction
Epoxy painted galvanized-steel exterior
Height adjustable, non-slip rubber feet.
Max. Heating Speed: 50°C/s
Material and Sizes of Tube High purity melted quartz Ø80mm OD x 1400mm L
Sliding Rail System: Cr coated double-hung
DC motor propulsion
