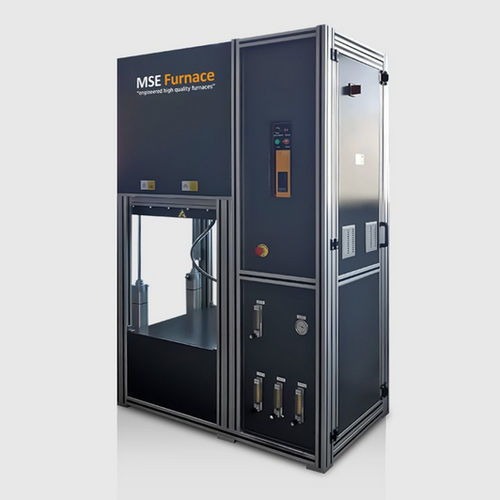

Graphite furnace ATM-ELV series

meltingsinteringaging

PRODUCT INFORMATION Atmosphere controlled lift bottom furnace is prefered for where a protective environment is required such as manufacturing of metal products, heat-treatment, sintering, melting, ageing, thermal testing, powder synthesizing. MSE Furnace designs and produces atmosphere controlled lift bottom furnace for heat treatment under the atmospheric conditions such as argon, nitrogen, vacuum, hydrogen and the like. Our company uses also cylindrical atmosphere cabins which are more stable than other geometries for atmosphere controlled lift-bottom furnace according to process. The cabin of furnace is water-cooled. And cabin of the furnace consists of heating elements and high-quality alumina refractories where selected according to the temperature. Please, review graphite furnaces for a better vacuum and metals sample workings and contact us. STANDARD FEATURES •Able to set programmable temperature, time and soaking time, display of cooling water temperature and process details, and data save by USB connection feature via PLC controller, touch screen •Temperature control via PID and ±1°C temperature display sensitivity •System protection for over temperature. Audio visual warning alarm •Temperature measurement via thermocouple •Error display in case a breakdown •Heating on all side •Exhaust gas outlet connected to inner volume •Graphite insulation and graphite resistance •Low energy consumption •Automatic energy cut while lift bottom opening and do not able to work unless lid is closed •10-1 mbar standard vacuum pump with the purpose of purge the air
