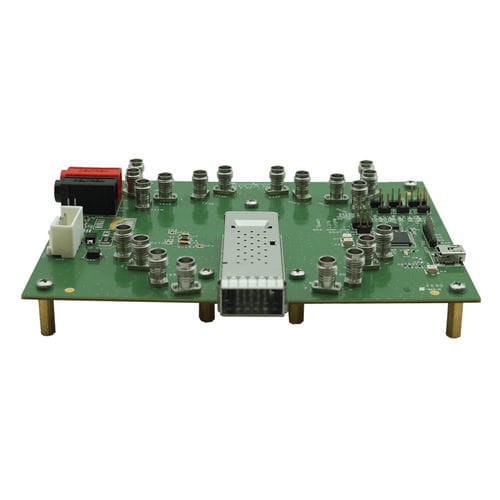

MCB test module ML4041-112opticalintegrityvoltage
Add to favorites
Compare this product
Characteristics
- Domain
- optical
- Test type
- integrity, voltage, temperature, MCB, signal integrity
- Tested product
- cable
- Other characteristics
- USB, QSFP, QSFP112, 400G
Description
Supports 4x112G interfaces
Compliant with CEI-112G-VSR-PAM4 and CEI-56G-VSR-NRZ
Matched differential trace length
DUT voltage supply control (3.15V, 3.3V, 3.45V, or other user specified voltage levels)
DUT Current Sense
Superior Signal Integrity Performance Rogers 3003 based PCBs
4 or 1.85 mm connectors
Low Insertion Loss
Temperature Monitor
Four corner test capability
I2C master driven from both on board micro or external pin headers
USB interface
User friendly GUI for I2C R/W commands and loading custom MSA Memory Maps
All 4 channels come with matching trace length 1779 mils
On-board LEDs showing MSA output Alarm states
