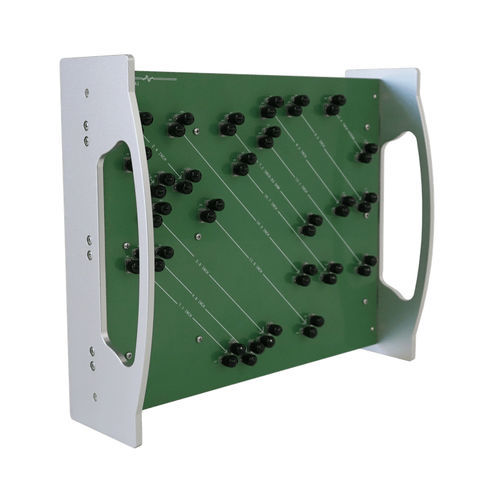

The 112G HSIO ecosystem compels semiconductor and system vendors to rely on new techniques and technologies to validate their designs. Novel equalization methods carry the major responsibility of recovering lossy signals and must be characterized in realistic environments. The MultiLane ML4067-112-24/18 112G channel board is an ideal tool for this purpose. Featuring a variety of carefully designed differential test traces, this passive test accessory adds precise ISI (inter-symbol interference) in order to calibrate or stress test DSPs, modules, gearboxes or other relevant systems in real-life environments. The ML4067-112-24 Channel Emulation board contains 13 trace paths with lengths ranging from 1.2 to 14.3 inches, and target losses which range from 2 to 24 dB at the target Nyquist frequency of 26 GHz. The ML4067-112-24 is an easy to use, compact and portable design. All traces are terminated by 2.4 mm connectors. Key Features The ML4067-112-24 has an extensive set of features: • 13 trace paths: 11 traces of 100 Ohm and 2 traces of 93 Ohm • Loss from 2 dB to 24 dB with a 2 dB increment • 6 dB trace is not available • Trace length range from 1.2 to 14.3 inches • Target Nyquist frequency of 26 GHz • Individual test report and s-parameter files will be provided for each channel board
