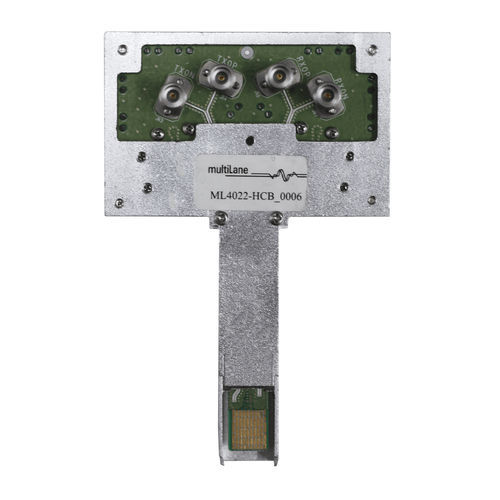

HCB tester ML4022-HCB

signal integrityMCBtransceiver

The ML4022-MCB is designed to provide an efficient and easy method of programming and testing 100G SFP-DD transceivers and active optical cables. It includes a complete user-friendly GUI supporting all features defined by SFP-DD MSA and simplifying configuration processes to enable intuitive memory map programming and testing. It is designed to simulate an ideal environment for SFP-DD transceivers module testing, characterization and manufacturing Key Features • A Supports 2x50G interfaces • I2C master driven from both on board microcontroller or external pin headers • 40 GHz 2.92 mm K Connectors • Current Sense • Matched differential trace length • All channels come with matching trace length • High performance signal integrity traces through K connectors to SFP-DD host connector • On-board LEDs display MSA output alarm states • On-board buttons/jumpers for MSA input control signal • User friendly GUI for I2C R/W command and loading custom MSA memory map • Four corner testing capability • USB Interface • Includes differential test trace 2x
