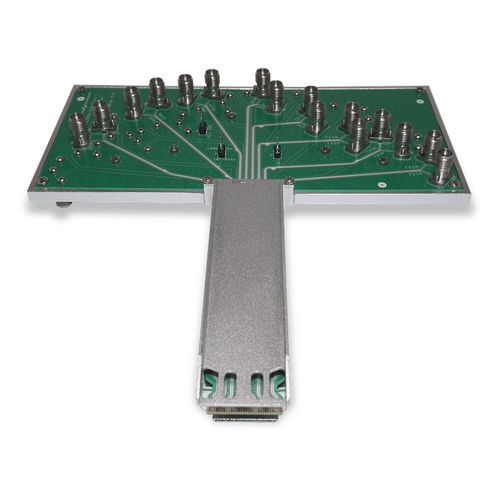

HCB tester ML4064-HCB-112

signal integrityloopbacktransceiver

OSFP is one of the leading multi-source agreements to drive the development of 800G ecosystem and MultiLane provides an OSFP development kit that includes a module compliance board, host compliance board and loopback module. Key Features • Supports 8x112G interfaces • Compliant with CEI-112G-VSR-PAM4 and CEI-56G-VSR-NRZ • I2C master driven from both on board microcontroller or external pin headers • 2.4 or 1.85 mm connectors • Current Sense • Matched differential trace length • All 8 channels come with matching trace length • High performance signal integrity traces from 2.4 or 1.85 mm connectors to OSFP host connector. • On-board LEDs display MSA output alarm states • Built with high performance PCB material • On-board buttons/jumpers for MSA input control signals • User friendly GUI for I2C R/W commands and loading custom MSA memory maps • Four corner testing capability
