ARM® Cortex®-A55 Quad-core SoM MYC-LT527 series

octa-coremicro SD cardHDMI

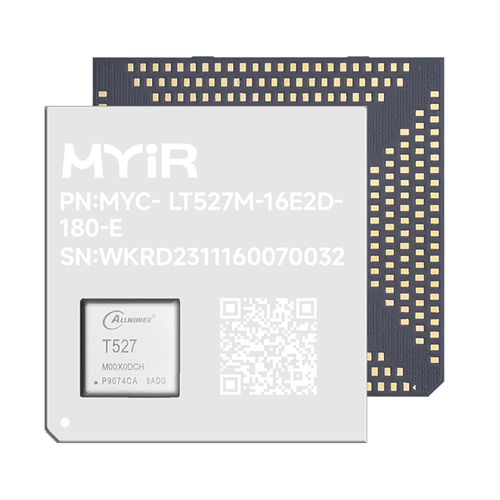

Allwinner T527 high-performance processor is founded on an eight-core Cortex-A55 + HiFi4 DSP + RISC-V multi-core heterogeneous industrial-grade processor, with selectable AI2 Tops models. LPDDR4/LPDDR4x Max. 4GB 32bits; It supports H.265 4K@60fps and H.264 4K@30fps video decoding, H.264 1080P@60fps video encoding, and a rich multimedia interface. Measuring only 43mm by 45mm, the MYC-LT527 is a compact System-On-Module (SoM) based on the Allwinner T527 processor, features an Octa-core ARM Cortex-A55 CPU clocked at up to 1.8GHz and a G57 MC1 GPU. It supports 4K@30fps H.265 video decoding and 4K@25fps H.264 video encoding. The T527 can also support up to 2 TOPs NPU to further enhancing AI computing capabilities. The MYC-LT527 incorporates the T527 processor and offers onboard 2GB/4GB LPDDR4, 16GB/32GB eMMC, 32Kbit EEPROM and a Power management IC (PMIC). It has 381-pin expansion interface design in LGA package, facilitating soldering on base boards. This interface enables the base board to carry most I/O signals to and from the SOM. MYIR offers the MYD-LT527 Development Board for evaluating the MYC-LT527. This board is assembled by soldering the MYC-LT527 SOM onto a base board which is served as an expansion board specifically tailored for using with the MYC-LT527. It is equipped with one USB3.0, two USB2.0, two Gigabit Ethernet, two CAN interfaces, one WiFi/Bluetooth module, Micro SD card slot, Audio interface, two Mini-CSI interfaces as well as multiple display interfaces: HDMI, Mini-DP, MIPI-DSI and LVDS. It also features a 40-pin RPI compatible expansion interface and one MYIR custom 40-pin expansion interface, MI Fans PI interface, for increased expandability.
