AMD SoM MYC-J7A100T

SPIDDR3 SDRAMfor industrial automation

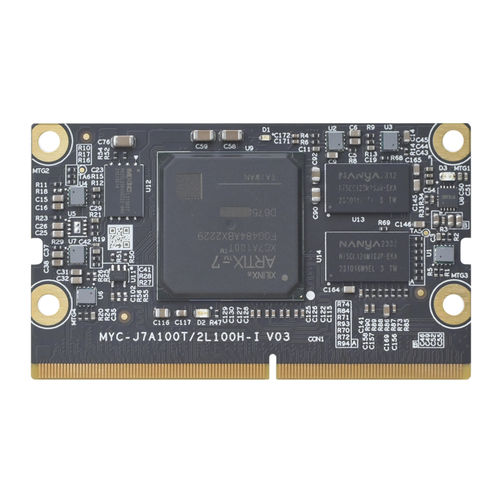

The XC7A100T-2FGG484I is an FPGA chip from the Artix-7 series, known for its cost-effectiveness, low power consumption, and high performance. It offers abundant programmable resources, including 100K logic cells, 35K FPGA storage units, and 120 I/O pins, making it suitable for a wide range of applications. Measuring only 69.6mm by 40mm, the MYC-J7A100T is a compact System-On-Module (SOM) based on the powerful AMD/Xilinx XC7A100T FPGA (XC7A100T-2FGG484I), which belongs to the AMD Artix-7 family. Additionally, it features onboard 512MB DDR3, 32MB QSPI FLASH, and 32KB EEPROM. A variety of IO signals are available through the 0.5 mm pitch 260-pin MXM gold-finger-edge-card connector, facilitating easy connection with MYIR’s standard base board of the MYD-J7A100T development board or customized base boards from users. Furthermore, the MYC-J7A100T SOM provides a total of 178 FPGA IOs, 4 pairs of GTP high-speed transceiver interfaces, and one JTAG interface. Among the 178 FPGA IOs, 80 operates at 3.3V level, while the remaining 98 are user-configurable with various levels (1.2/1.35/1.5/1.8/2.5/3.3V). The MYD-J7A100T Development Board comprises the MYC-J7A100T SOM and a specially designed base board, which provides a fully equipped platform for evaluating and developing solutions based on AMD/Xilinx Artix-7 FPGAs. The MYD-J7A100T incorporates the XC7A100T (XC7A100T-2FGG484I) device from the Artix-7 series and extends a rich set of peripherals and interfaces on the base board through connectors and headers.
