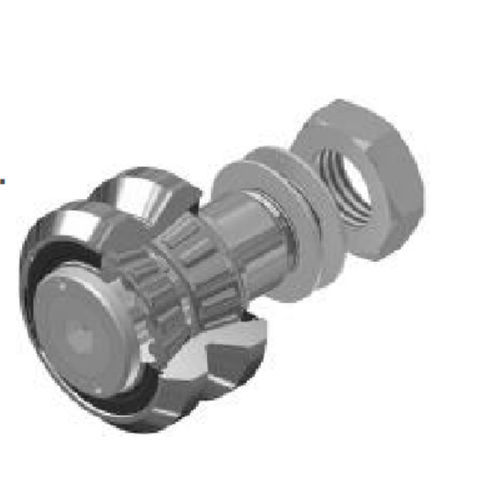

Guide roller RKY seriesstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- guide
- Material
- stainless steel
- Outer diameter
52 mm, 62 mm, 72 mm
(2.047 in, 2.441 in, 2.835 in)- Inside diameter
21 mm, 27 mm, 36 mm
(0.83 in, 1.06 in, 1.42 in)- Load capacity
Max.: 66,000 N
Min.: 4,800 N
Description
Guide rollers with tapered roller bearings.
The sides of the race are convex with radius R = 400
• Standard seals: material NBR, RS type
• On request, the guide rollers can be supplied with external parts in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V), not available for dimension RKX (R) 110 C. Internal rolling elements in standard bearing steel
• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: guide rollers RKY 40° – guide rollers RKX 45°
