Guide roller FR ... EU AS seriesstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- guide
- Material
- stainless steel
- Outer diameter
Min.: 22 mm
(0.866 in)Max.: 62 mm
(2.441 in)- Inside diameter
Min.: 6 mm
(0.24 in)Max.: 19 mm
(0.75 in)- Load capacity
Min.: 210 N
Max.: 13,900 N
Description

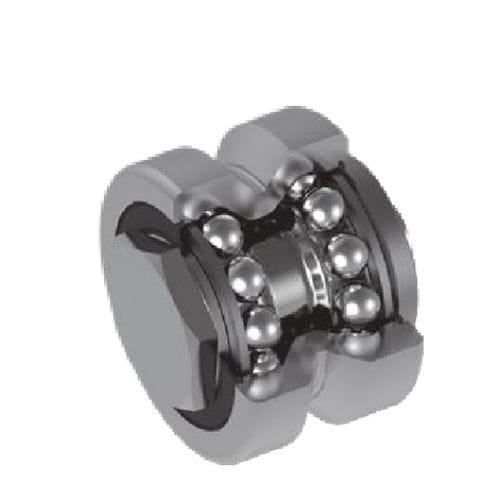

Gide rollers with ball bearings.
• NBR seals RS type
• Pressure angle α for load calculation: 40°
Catalogs
Circular system AXNR - AXNR211EN
40 Pages
Linear guide systems NL211EN
164 Pages
