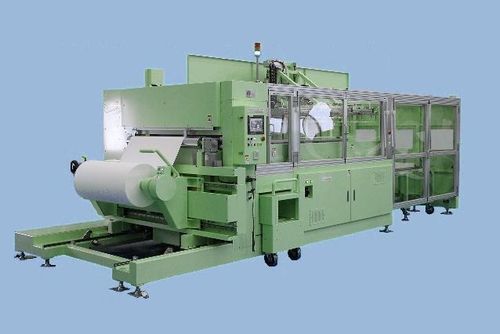

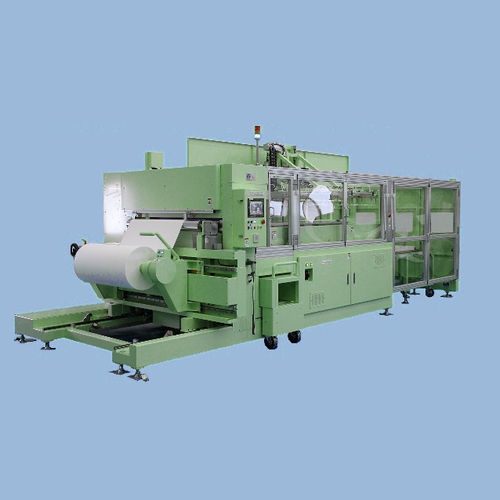

Rotary blade cutting machine

for plastic filmsheetwith programming software

Unwind resin sheets from a parent roll and cut them as required.
Enable high-precision cutting of stretchable sheets while improving yield.

Product description
We developed an original high-precision film cutting machine using an "air-cut" mechanism that delivers low dust generation, low noise and ultra-low maintenance. The system can handle a variety of films that previously could not be cut with high precision. We design and manufacture integrated solutions from roll feed and cut-off through cutting/punching, pallet stacking, automatic position correction and line stacking.

Features

• Supports 2-side, 4-side and trimmed-edge cuts.
• Proprietary technology provides low dust, low noise and extended blade life.
• Using parent rolls removes the need for pre-cut sheets, contributing to cost reduction.
• Compatible with both On-Line and Off-Line configurations.
• Handles adhesive and stretchable sheets.
• Cutting/processing accuracy: variation within ±0.5 mm; stacking accuracy: variation within ±0.5 mm.

Applications

• Cutting and supply equipment for solar panel encapsulant materials
• Cutting equipment for LCD glass lamination cushioning materials

Key specifications

• Cutting method: air-cut mechanism (low dust, low noise, ultra-low maintenance)
• Supported cuts: 2-side, 4-side, trimmed-edge cuts
• Material compatibility: various films such as adhesive sheets and stretchable sheets
• Accuracy: cutting/processing variation within ±0.5 mm; stacking variation within ±0.5 mm
• High-precision cutting technology for improved reproducibility and yield
• Example configuration: integrated design from roll feed to cutting/punching, pallet stacking, automatic position correction and line stacking
• Installation modes: On-Line / Off-Line compatible
• Maintenance: ultra-low maintenance design
