Cutting machine

Product overview

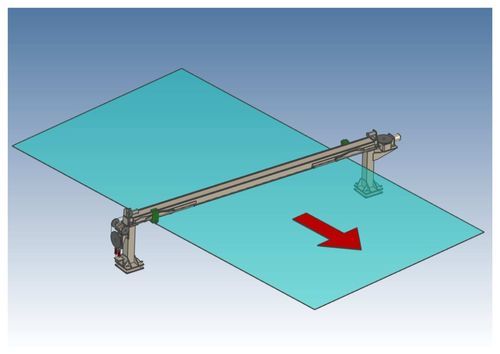

This machine uses a diamond wheel (cutter) to scribe score lines on glass. The transverse unit applies scribe lines perpendicular to the glass flow and advances the cutter at an angle synchronized with line speed, enabling in-line scribing without stopping the glass. Two cutter sets are installed so that while one cutter scribes the other returns to origin, allowing continuous short-interval cutting in the material flow.

Other implementations

• Walking cut machine (moves the cutter unit in synchronization with line speed while cutting)
• Longitudinal scribing unit (applies scribe lines parallel to the process direction)
• Numerical XY-controlled scribing for stopped glass, enabling circular, curved and special-shape score patterns

Applicable work range
Thickness range supported: 0.5 mm–25 mm.

Related equipment
We also have manufacturing experience with break-off / folding units that separate glass along scribed lines.

Features / Technical specifications

• Processing method: diamond wheel scribing
• Process types: transverse, longitudinal and edge scoring/cutting
• Continuous cutting: two-cutter set design for alternating, continuous cuts
• Shape support: straight, circular, curved and special shapes via XY numerical control
• Thickness capability: 0.5 mm–25 mm
• Ancillary equipment: production experience for post-scribe break-off units
