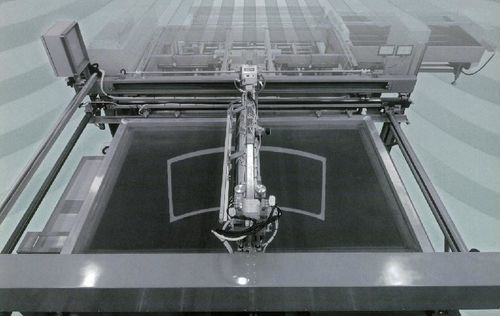

Automatic screen printing machine

multi-colorfor the glass industryhigh-accuracy

Product overview
Automated screen printing system for automotive glass and large flat glass panels. Designed for large-area, high-precision ink deposition on glass substrates.

Machine configuration

• Automatic positioning unit
• Screen printer
• Discharge conveyor (CV)
• Automatic inspection system (optional)

Key features

• Large-area, high-precision screen printing capability
• Digital control for consistent operation regardless of operator
• Single-operator changeover with screen mounting and fine adjustment to improve productivity
• Automatic maintenance of screen-to-substrate clearance for consistent print accuracy and extended screen life
• Reduced need for spare screen frames
• Automatic inspection detects print misalignment and feeds back corrections to the positioning unit for automatic compensation

Applications

• Automotive glass
• Architectural flat glass
• Construction materials
• Other printable flat substrates

Technical specifications

• Intended use: screen printing on automotive and architectural glass
• Configuration: automatic positioning unit, screen printer, discharge conveyor, optional automatic inspection
• Printing: supports large-area, high-precision printing
• Control: digital control minimizes operator dependency
• Productivity: single-operator changeover and screen setup
• Quality control: automatic clearance maintenance and automatic inspection with positional correction
