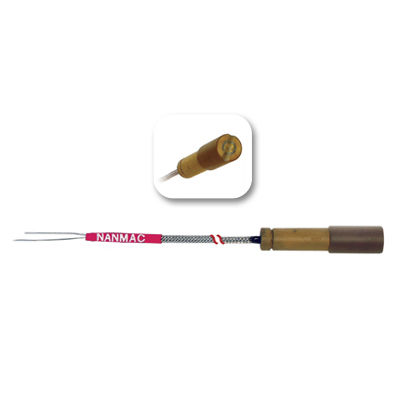

Thermocouple B6 Series

for moving surfacesinsulatedspring-loaded

Rub & Contact Thermocouples Ideal for Moving Surfaces: Drums . Fibers . Wire . Etc. B6 Series Model RDD Thermocouple - Specifications Description Soft brass disc brazed to thermocouple element, disc and thermocouple is mounted into a high temperature plastic housing, which is spring-loaded in the aluminum mounting block. Standard is 36 inches of fiberglass insulated leads, though most any lead configuration and plug assembly can be added. The device uses a spring rate of 5.83 lbs./in. Application Direct contact with rotatin g drum s and discs or moving plates and sheets. Performance 30 second response time; 450 degrees Fahrenheit maximum service temperature.
