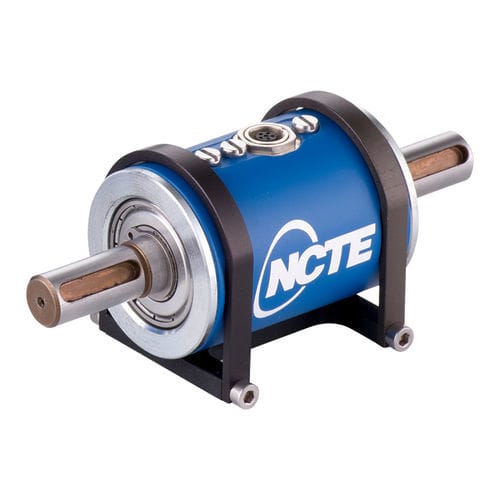

Static torque sensor 2000dynamic0-10 V0-5 V
Add to favorites
Compare this product
Characteristics
- Type
- static, dynamic
- Output
- 0-5 V, 0-10 V
- Supply voltage
- 6VDC
- Protection level
- IP50
- Other characteristics
- bidirectional
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 500 Nm
(368.78 ft.lb)- Precision
1 %
- Rotational speed
1,000 rpm, 5,000 rpm
(6,283 rad.min-1, 31,416 rad.min-1)
Description
Inexpensive, reliable, easy to integrate: With the Series 2000 you can measure torques quickly and easily - both statically and dynamically. The sensors are mechanically connected via a round or square shaft. Their accuracy amounts to 1% and they provide an analogue output signal of 0-5V, 0-10V, ±5V or ±10V.
Main areas of application for the 2000 Series
Test benches
Production lines (e.g. end-of-line testing)
Teaching
