Static torque sensor 7000
dynamic4-20 mA0-10 V

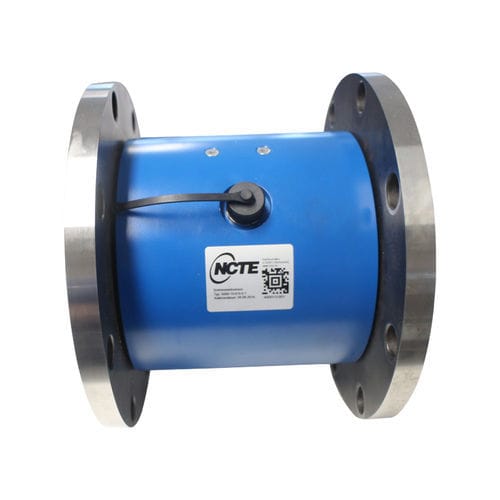

Static torque sensor - 7000 - NCTE AG - dynamic / 4-20 mA / 0-10 V

Static torque sensor - 7000 - NCTE AG - dynamic / 4-20 mA / 0-10 V - image - 2

Add to favorites

Compare this product

Characteristics

Type

static, dynamic

Output

USB, CAN Bus, 0-10 V, 4-20 mA

Supply voltage

9VDC

Protection level

IP50, IP65

Other characteristics

bidirectional, for the automobile industry

Torque

Max.: 5,000 Nm
(3,687.81 ft.lb)

Min.: 3,000 Nm
(2,212.69 ft.lb)

Precision

0.5 %

Rotational speed

3,600 rpm
(22,619 rad.min-1)

Description

Special challenges require special measuring technologies. This is why we have developed the 7000 Series - particularly robust torque sensors that work perfectly even at high nominal torque ranges (3,000 Nm to 5,000 Nm) and are therefore ideally suited for demanding applications, for example in agriculture. Our system measures torques statically and dynamically in real time. We configure our sensors of the 7000 series according to your ideas: For example with additional power take-off shafts, sleeves or the higher protection class IP65. For signal output we are offering 0-10 V, 4-20 mA, CAN bus or USB. Along with the USB port option, we supply you with our suitable NCTE software, which enables direct data analysis on a screen - simply by plug & play. Main areas of application for the 7000 Series Test benches Production monitoring
