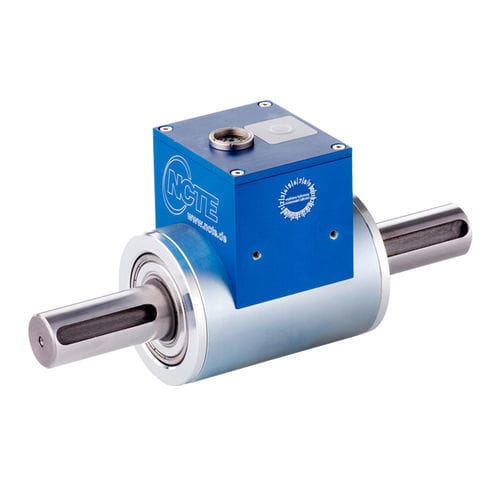

Static torque sensor 4000dynamic4-20 mA0-10 V
Add to favorites
Compare this product
Characteristics
- Type
- static, dynamic
- Output
- 0-10 V, 4-20 mA
- Supply voltage
- DC
- Protection level
- IP50
- Other characteristics
- bidirectional
- Torque
Max.: 1,000 Nm
(737.56 ft.lb)Min.: 0 Nm
(0 ft.lb)- Precision
0.1 %
- Rotational speed
5,000 rpm, 8,000 rpm, 10,000 rpm
(31,416 rad.min-1, 50,265 rad.min-1, 62,832 rad.min-1)
Description
Both our series 3000 and the identically designed series 4000 have been developed for highest precision tasks, such as those required in médical equipment. The sensors of both series measure particularly reliably and accurately (0.2% in the 3000 sériés and 0.1% in the 4000 sériés). Both variants can determine torques staticaily and dynamically in real time. Shafts are available as round or square types. In addition, we can configure the sensors individually for you and, for example, offer an angular sensor.
Main areas of application for the 3000/4000 series
■ Labs
■ Test facilities
■ Quality assurance
