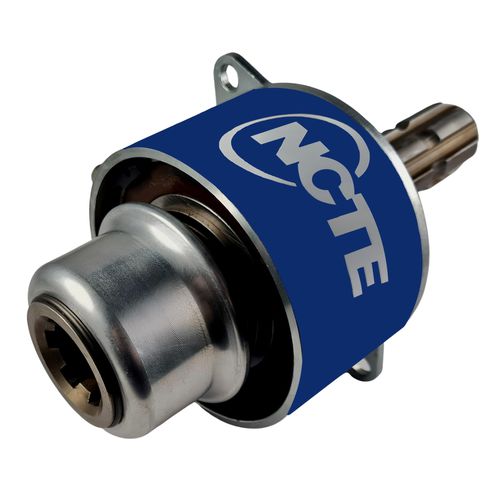

Rotary torque sensor 7300

PTO shaft4-20 mA0-10 V

With the new High Performance PTO Sensor 7300, NCTE offers a new and innovative solution in the area of torque measurement for the agriculture industry. The sensor is characterized by a high accuracy of 0,5% and a torque range of up to 3000 Nm. The greatest challenge for sensors in agriculture is the working environment. The contactless measurement and the compact design with protection class IP65 make the PTO sensor extremely robust against environmental conditions such as vibration, dirt and liquids. Its compact design has the dimensions 238mm and 120mm and needs less mounting space. The sensor is so easy to install and lock without tools between the PTO shaft and cardan shaft that one person can operate it alone. High performance made easy. ADVANTAGES: Sensor developed specifically upon the requirements of PTO applications Sensor dimensions optimized to avoid additional mounting space Low weight of only 5.3 kg Tool-free mechanical assembly between the PTO shaft and cardan shaft possible Can be installée! by one person independently Contactless measurement and maintenance free solution based on inverse magnétostriction technology PTO sensor insensitive to vibration, dirt and fluids (e.g. harvest juices) Reliable measurement under difficult conditions (e.g. high vibration or temperature) Availability of real time data
