Flexible coupling
disc

flexible coupling
flexible coupling
Add to favorites
Compare this product


Characteristics

Type
flexible, disc
Torque

1,600 Nm
(1,180.0994 ft.lb)

Max.: 160 Nm
(118.0099 ft.lb)

Description

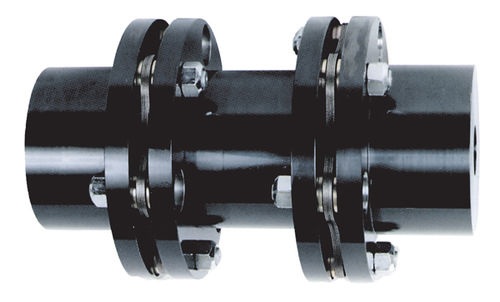

Flexible disc coupling NDE Clarke Pitchline specialise in flexible disc couplings, ideal for applications including turbines, pumps, compressors and marine propulsion. Series FDL The economic single disc concept for low to medium duty applications. Maximum Torque Capacity up to 1600Nm. Bore Capacity up to 105mm. Series FDM The general purpose high torque/high misalignment solution. Maximum Torque Capacity up to 260,000Nm. Bore capacity up to 370mm. Series FDP The easy to assemble high torque/high misalignment solution. Maximum Torque Capacity up to 23100Nm. Bore Capacity up to 220mm.
