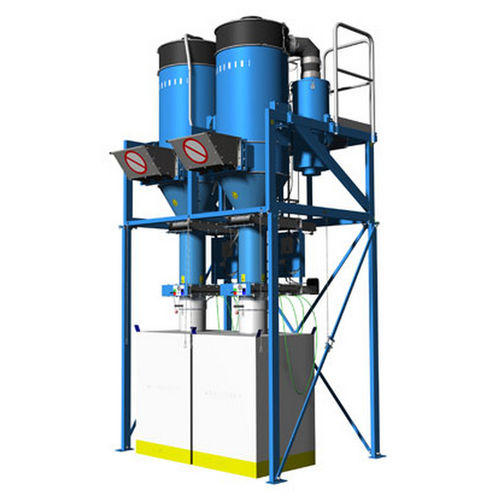

Bag dust collector FlexFilter EX

reverse air cleaningmodular

A state of the art filter system to meet your current and future needs The Flexfilter EX is manufactured to withstand overpressure from a potential explosion and is equipped with an explosion relief panel. The harmful effects of an explosion are minimized by venting the overpressure and flame propagation via the relief panel to a safe area. The dust collector is fully earth bonded in all modular components. All electric equipment is EX classified for combustible dust. Options are available for the collected dust from either a standard 70L (18 gal) collection bin complete with bin balance kit to allow the use of conductive plastic sack for ease of removal of the collected dust or fully automatic empty device with fully conductive bulk bag with earth cables for larger installations. A control filter comes as standard to allow the use of non-EX rated vacuum units. Permitted materials: It is of outmost importance to know the properties of the extracted material. The FlexFilter EX is intended to be a part of an extraction system collecting material with the following properties: - Dust explosion class: St1 and St2 - Pmax: ≤10 bar - MIE (Minimum Ignition Energy) 3 mJ - MIT (Minimum Ignition Temperature) > 205 °C Product marking: The FlexFilter EX is ATEX classified according to directive 2014/34/EU and marked:CE Ex II 3D Ex c T=130 ºC A state of the art filter system to meet your current and future needs Equipped with an explosion relief panel Standard 70L bin with antistatic plastic bag, or conductive bulk bag fitted to a fully automatic emptying device
