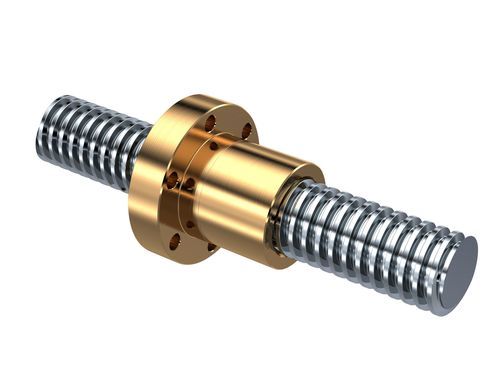

Trapezoidal lead screw TGT series

stainless steelrolled

NEFF’s TGT trapezoidal thread drives offer a robust and cost-effective solution for converting rotary motion into precise linear motion. The combination of a trapezoidal thread spindle and a matching trapezoidal thread nut creates reliable drive systems for a wide range of adjustment, positioning, and lifting tasks in machine and plant engineering.

Trapezoidal screw drives are characterized by their simple design, high load capacity, and reliable operation. They are particularly well-suited for applications where robust power transmission, low maintenance requirements, and cost-effective implementation are key priorities.

Your Benefits at a Glance

• Robust solution for linear motion tasks
• Reliable power transmission for mechanical adjustments
• Simple and proven design
• Cost-effective alternative for many applications
• Versatile combination options with different threaded nuts
• Suitable for manual and motorized drives
• Custom designs available to meet specific customer requirements

Typical Applications

NEFF TGT trapezoidal screw drives are particularly suitable for:

Machine building
Fixture construction
Lifting and adjustment units
Automation technology
Testing and assembly systems
Machine tools
Special-purpose machine building
Positioning systemsNEFF’s TGT trapezoidal thread drives offer a robust and cost-effective solution for converting rotary motion into precise linear motion. The combination of a trapezoidal thread spindle and a matching trapezoidal thread nut creates reliable drive systems for a wide range of adjustment, positioning, and lifting tasks in machine and plant engineering.
