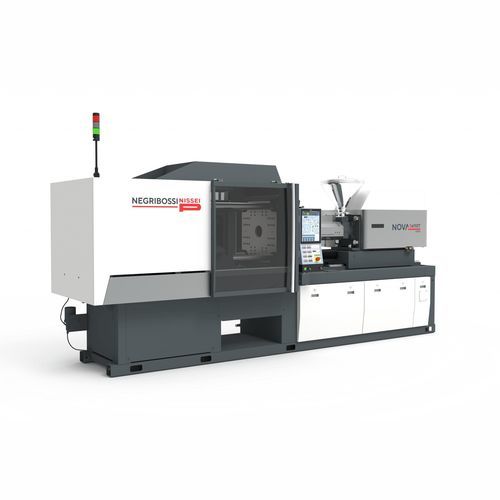

Horizontal injection molding machine NOVA 5eT

fully-electricfor rapid production cyclesfast-cycling

Overview
Nova 5eT is the fifth-generation all-electric injection moulding machine engineered for high-precision, high-cycle production. The Flat Clamp Mechanism delivers uniform contact pressure while EG injection units and High Precision Metering with Pre Pack stabilise melt volume and density for repeatable parts. The rigid bed, prismatic linear platen guides and bush-less platen design reduce contamination and support cleanroom-capable operation. Centralised automatic grease lubrication and fully overlapping movements improve uptime and cycle times.

Key sectors

• Medical
• Optical
• Electrical
• Technical moulding

Main features

• Flat Clamp Mechanism for uniform contact pressure
• High Precision Metering with Pre Pack
• Three V‑P changeover methods
• Low particle emission suitable for Cleanroom Class 10,000
• Improved platen dynamics
• Compact footprint (up to 15% smaller)

Flat clamp

• Reduces toggle bush loading
• Extends mould life
• Lowers required clamp force

High dynamic toggle

• Faster open/close speeds
• High-sensitivity mould protection
• Automatic force adjustment

Prismatic linear platen guides

• Accurate platen guidance
• Energy efficiency
• Cleaner moulding area

Clean operation

• Reduced particle emission
• Centralised automatic grease lubrication (standard)
• Cleanroom-capable design (Class 10,000 guidance)

TACT V / TACT5 controller
Modern controller designed for smart factory connectivity and usability. Features include EtherCAT for high-speed fieldbus control, standard OPC-UA for EUROMAP77/83 communications, and easy connection to cameras, QR scanners and RFID. Digital servo commands improve controllability. User-friendly 15" LCD touch display with history and graph functions; panel is water- and dust-resistant.

Pre-Pack and injection unit benefits

• Pre Pack: consistent shot volume and melt density; stabilises check valve response; auto-adapts for batch variations and regrind
• EG injection units: reduced heat-up and plasticising times; improved moulding stability

Additional advantages

• Up to 15% smaller footprint vs previous series to increase machine density per area
• Design optimised for high-cycle, cleanroom production

Technical specifications

• Commercial model name: NOVA 5eT
• Clamping force / machine range: 50–360 tonnes
• Technology: all-electric injection moulding
• Clamping system: Flat Clamp Mechanism with prismatic linear platen guides and self-lubricating linear bearings
• Cleanroom capability: low particle emission, meets Cleanroom Class 10,000 guidance
• Lubrication: centralised automatic grease lubrication (standard)
• Controller: TACT V and TACT5 multi-touch controller with EtherCAT and OPC-UA support, 15" LCD touch panel, water/dust resistant
• Control features: high precision metering with Pre Pack, three V‑P changeover methods, digital servo control
• Injection unit: EG injection units for reduced heat-up and plasticising times, improved moulding stability
• Mechanical benefits: higher platen dynamics, reduced toggle bush loading, automatic force adjustment, high-sensitivity mould protection
• Footprint: up to 15% smaller than previous series
