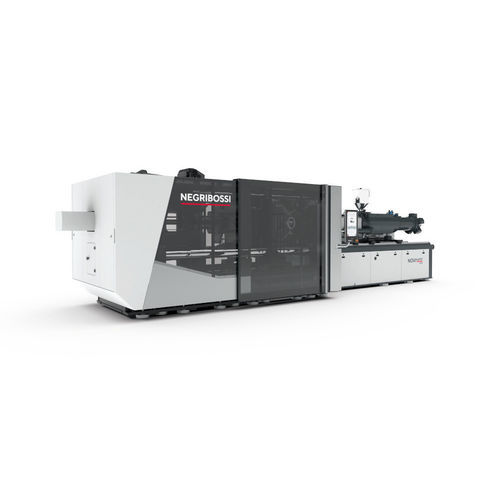

Horizontal injection molding machine NOVA pservo-hydraulicfor PVCgas-assisted
Add to favorites
Compare this product
Characteristics
- Closure
- horizontal
- Operation
- servo-hydraulic
- Treated material
- for PVC
- Other characteristics
- multi-component, two-platen, for automotive applications, large capacity, gas-assisted
- Clamping force
Min.: 9,806.65 kN
Max.: 12,746.65 kN
Description
Overview
The NOVA p series are two-platen servo-hydraulic injection moulding machines designed for large-component manufacture. The modular architecture and very low base deliver compact overall dimensions with improved mould accessibility. The injection unit and drive control prioritise process stability and repeatable shot-to-shot performance in high-tonnage applications.
Controller - Motus
Key features
Key sectors
Technologies
Automation
Technical specifications
The NOVA p series are two-platen servo-hydraulic injection moulding machines designed for large-component manufacture. The modular architecture and very low base deliver compact overall dimensions with improved mould accessibility. The injection unit and drive control prioritise process stability and repeatable shot-to-shot performance in high-tonnage applications.
Controller - Motus
- Innovative gesture navigation system with swipe, scroll & zoom operations
- Virtual axis object for intuitive axis movement based on gesture orientation (patent pending)
- Modern slim design with smartphone-like ergonomics
- Customizable interface to tailor screens and functions to operator needs
- Sequencer to create and store special cycles
- Quick search for fast parameter editing, graphical editing and analysis
Key features
- Mould thickness and clamping force self-adjustment to compensate heat expansion in large molds
- Moving platen linear and lateral guidance system ensuring platen parallelism, cleanliness and precision
- Three-stage clamp speed profile using low-pressure cylinders for faster, controlled movements
- Closed-loop motor speed control for improved melt homogeneity and consistent shot weight
Key sectors
- AUTOMOTIVE
- WHITE GOODS
- CONSTRUCTION
- CONTRACT MOULDING
Technologies
- MULTI-COMPONENT
- PVC processing
- FOAM MICROCELLULAR MOULDING®
- Gas injection
Automation
- Robots for part removal and automation cell integration
Technical specifications
- Model series: NOVA p
- Clamping force range: 1000-1300 tonnes
- Machine type: Two-platen servo-hydraulic injection moulding machine
- Design: Highly modular with very low base for improved accessibility
- Injection unit: Engineered for efficiency and process stability to support large-component manufacture
- Control system: Motus multi-touch controller with gesture navigation, virtual axis object, customizable interface, sequencer and quick search for parameter editing
- Clamping system: Mould thickness and clamping force self-adjustment; three-stage clamp speed profile via low-pressure cylinders
- Platen guidance: Moving platen linear and lateral guidance system for improved platen parallelism and precision
- Drive control: Closed-loop motor speed control for superior melt quality and consistent shot weight
