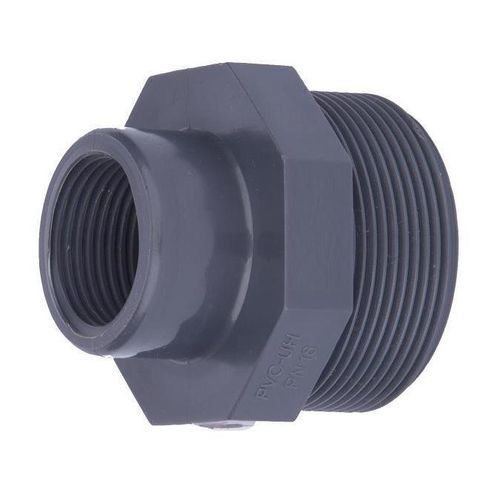

Threaded male-to-female reducer RE61 series

malefemalefor pipes

Product overview
U-PVC pressure reducer (male/female) for threaded pipe connections, designed for systems using BSP parallel threads.

Key information

• Type: BSP parallel threaded fittings
• Brand: U-PVC PRESSURE FITTINGS
• Product model / series: RE61
• Material: U-PVC (U-PVC pressure fittings)

Summary
Reducer (male/female) available in multiple nominal sizes; see datasheet for dimensions and packaging details.

Datasheet (dimensions table)
Code | GxG1 | L | L1 | Z | C | E | PN | Gr | Pack | Box
RE61N025B | 3/4" x 1/2" | 16.5 | 15.5 | 26 | 30 | 33 | 16 | 17 | 320 | S
RE61N032B | 1" x 1/2" | 19.5 | 16.5 | 29 | 36 | 41 | 16 | 17 | 220 | S
RE61N032C | 1" x 3/4" | 19.5 | 19.5 | 30 | 36 | 41 | 16 | 26 | 450 | M
RE61N050D | 1 1/2" x 1" | 30.0 | 22.5 | 34 | 50 | 61 | 16 | 55 | 200 | M
RE61N063C | 2" x 3/4" | 36.0 | 19.5 | 37 | 65 | 76 | 16 | 85 | 120 | M
RE61N063D | 2" x 1" | 36.0 | 22.5 | 37 | 65 | 76 | 16 | 97 | 120 | M
RE61N063E | 2" x 1 1/4" | 36.0 | 27.0 | 37 | 65 | 76 | 16 | 94 | 110 | M
RE61N063F | 2" x 1 1/2" | 36.0 | 21.0 | 37 | 65 | 76 | 16 | 96 | 110 | M

Available PDF datasheets

• RE61N025B
• RE61N032B
• RE61N032C
• RE61N050D
• RE61N063D
• RE61N063E
• RE61N063F

Characteristics / technical specifications

• Product model / series: RE61
• Material: U-PVC (U-PVC pressure fittings)
• Function: Reducer (male / female)
• Thread type: BSP parallel threaded fittings
• Available variants and sizes: see datasheet table above (codes RE61N025B, RE61N032B, RE61N032C, RE61N050D, RE61N063C, RE61N063D, RE61N063E, RE61N063F)
• Dimensions provided: L, L1, Z, C, E and nominal PN per variant
• Packaging info: Pack/Box quantities given per variant in datasheet table
