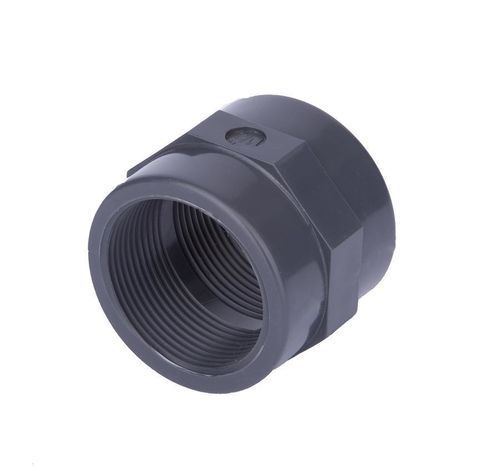

Hydraulic fitting SO11 series

socketthreadedBSP

Short description
Socket-threaded UPVC (U-PVC) pressure fitting for BSP parallel threaded connections, model SO11. Available in sizes from 1/2" to 2"1/2.

Product details

• Type: BSP parallel threaded fittings (socket threaded)
• Material: UPVC (U-PVC pressure fittings)
• Model: SO11
• Connection: socket threaded
• Available sizes/codes: see datasheet table
• Packaging: pack/box units per datasheet

Summary
Socket threaded fitting SO11 for BSP parallel threads; multiple sizes and CAD files available.

Datasheet - dimensional table
Code | G | L | Z | E | C | PN | Gr | Pack | Box
SO11N0200 | 1/2" | 16.5 | 7 | 27 | 30 | 16 | 18 | 350 | S
SO11N0250 | 3/4" | 19.5 | 7 | 33 | 36 | 16 | 25 | 500 | M
SO11N0320 | 1" | 22.5 | 8 | 41 | 46 | 16 | 45 | 300 | M
SO11N0400 | 1"1/4 | 27 | 8 | 50 | 55 | 16 | 65 | 180 | M
SO11N0500 | 1"1/2 | 30 | 8 | 61 | 60 | 16 | 70 | 160 | M
SO11N0630 | 2" | 36 | 8 | 76 | 75 | 16 | 125 | 85 | M
SO11N0750 | 2"1/2 | 36 | 9 | 90 | 90 | 16 | 200 | 48 | M

Available datasheet files (per size)
Datasheets available for codes: SO11N0200, SO11N0250, SO11N0320, SO11N0400, SO11N0500, SO11N0630, SO11N0750

3D / CAD
3D CAD model reference available for SO11 (embedded STEP viewer).

Technical characteristics / specifications

• Type: BSP parallel threaded fittings
• Material: UPVC (U-PVC pressure fittings)
• Connection style: Socket threaded
• Product family / model: SO11
• Available sizes / codes: see datasheet table above (from 1/2" up to 2"1/2)
• Packaging units: Pack/Box values shown in datasheet table
• Pressure rating indicated as PN in datasheet table
